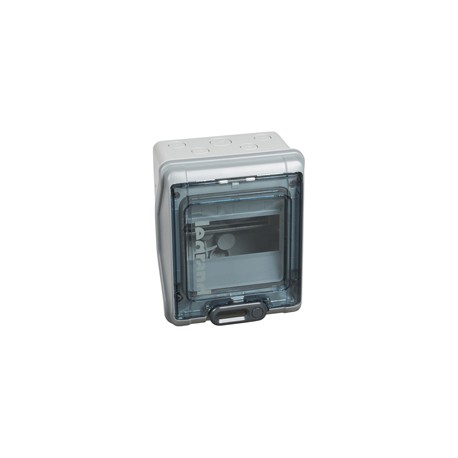

LEGRAND 601996 601996 LEGRAND BOX MOD. WATERPROOF IP65 6 MOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

601996 LEGRAND BOX MOD. WATERPROOF IP65 6 MOD

601996

601996

LEGRAND

6 Pcs.

BOX MOD. WATERPROOF IP65 6 MOD Cabinets PLEXO³ - IP65 - IK09 - 6 modules - 1 row Plexo³ Waterproof Modular Box - IP65- IK09 - 6mod - 1 row

Automation > Small distribution board
DIN MODULAR BOXES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 601996 operates as a waterproof modular box designed for surface-mounted electrical installations requiring enhanced ingress protection. Such enclosures safeguard modular circuit components from water splashes, dust, and harsh ambient conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 200 mm
  • Type of door (EF004464): EV000426
  • Inner depth (EF001131): 48.5 mm
  • Transparent cover/door (EF006244): Yes
  • Degree of protection (IP) (EF005474): IP65
  • DIN-rail (EF001134): Yes
  • Housing material (EF001596): Plastic
  • With lock (EF006306): No
  • Mounting method (EF000003): Surface mounted
  • Number of rows (EF000266): 1
  • Cover model (EF009212): Closed
  • Signal passing door (EF015941): Yes
  • RAL-number (EF000116): 7046
  • Built-in depth (EF000218): 111.6 mm
  • Type of covering (EF000339): Door
  • With mounting plate (EF000118): No

More info

▲
  • Pack (number of units)6
  • Volume (dm3)27.055
  • Weight (g)3 882.00
Product characteristics
Cabinets 2 to 8 modules
  • Number of rows : 1
  • Number of modules : 6
General characteristics
Plexo³ - IP 65 weatherproof cabinets, multifunction sleeves and accessories
  • Self-extinguishing: resistance to incandescent wire 650°C.
  • Allows to achieve assemblies conform to IEC 61 439 - 3
  • Weatherproof cabinets - IP 65 - IK 09 - Class II
  • Door and cabinet fully reversible. Removable chassis and faceplates from 2-row versions up
  • 2-position rail for modular products and moulded cases. Spacing between rails 150 mm
  • Can be fitted with perforated plates and solid faceplates for mounting non-modular products
  • Lockable door handle, sealable cover and faceplate
  • Shock-resistant polystyrene material
  • Box colour light grey L750A, cover colour dark grey R746A
  • Supplied without terminal blocks
