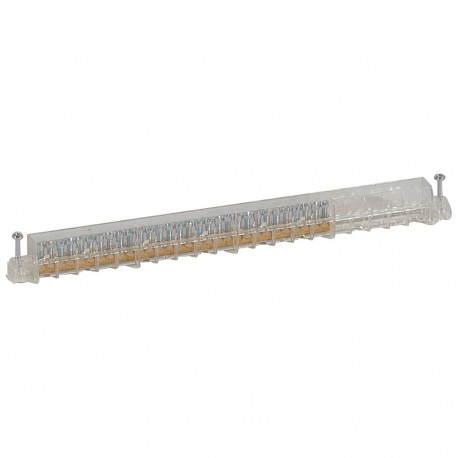

LEGRAND 601292 601292 LEGRAND TERMINAL BLOCK EARTH-30 HOLES View larger
Images are for illustrative purposes only. Please refer to data sheet for details

601292 LEGRAND TERMINAL BLOCK EARTH-30 HOLES

601292

601292

LEGRAND

10 Pcs.

TERMINAL BLOCK EARTH-30 HOLES Terminal block - earth - 30 holes 30-connection earthing terminal blocks

Automation > Rail terminal bar
SPLITTERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 601292 earth terminal block provides a dependable grounding busbar with numerous connection points to secure protective conductor continuity in industrial enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 14 mm
  • Nominal current (EF000001): 76 A
  • Connection type (EF000124): Screwing
  • Mounting method (EF000003): Screw
  • Contact safe (EF004521): Yes
  • Suitable for extra fine-strand conductors (EF016328): No
  • Number of poles (EF001391): 1
  • Conductor cross section, output (EF016331): 1.5 mm²
  • Suitable for stranded conductors (EF007818): Yes
  • Depth (EF000049): 16.5 mm
  • Conductor cross section, input (EF016330): 1.5 mm²
  • Suitable for fine strand conductors (EF007804): Yes
  • Width (EF000008): 276 mm
  • Suitable for solid conductors (EF007816): Yes
  • Number of outputs (EF000319): 29
  • Number of inputs (EF000318): 1

More info

▲
  • Pack (number of units)10
  • Volume (dm3)2.35
  • Weight (g)1 318.00
Product characteristics
Accessories
Terminal blocks for 1, 2, 3 and 4 rows of 12 modules
General characteristics
Surface mounting cabinets Nedbox - 8 to 48 modules
  • IP 40 - IK 07 with door
  • IP 30 - IK 05 without door
  • Class II
  • White RAL 9003
  • Allows to achieve assemblies conform to IEC 61439-3
  • Self extinguishing 650° C
  • Polysterene material
  • Can be equipped with reversible plastic or metal door
  • Chassis can be clipped removed and tipped back to facilitate cabling
  • Supplied without terminal blocks
