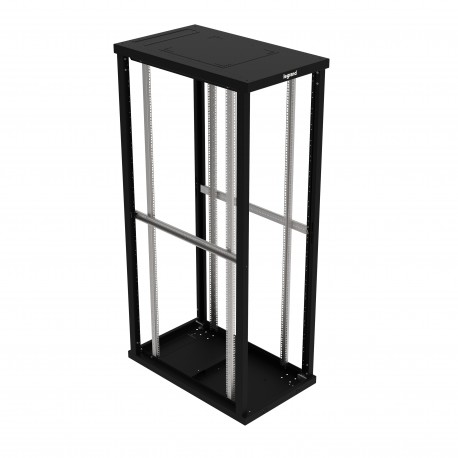

LEGRAND 446823 446823 LEGRAND LKDC-42U 800X1200 RAL 9005 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

446823 LEGRAND LKDC-42U 800X1200 RAL 9005

446823

446823

LEGRAND

1 Pcs.

LKDC-42U 800X1200 RAL 9005 Server cabinet frame Linkeo Data Center 42U - 1967x800x1200mm Cabinet frame 42U 800x1200mm without side doors or tilting bar

Automation > Network/server enclosure
ENCLOSURES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 446823 LKDC-42U 800X1200 RAL 9005 is a sturdy floor-standing rack framework built to house extensive server deployments and networking infrastructure in enterprise facilities. Robust frames provide solid structural support for high-capacity equipment racks.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 1967 mm
  • Degree of protection (IP) (EF005474): IP20
  • Material (EF002169): Steel
  • With front door (EF007377): No
  • Number of doors (EF000122): 0
  • Surface finishing (EF006569): Powder coated
  • Demountable (EF007551): Yes
  • With roof plate (EF007375): Yes
  • With base (EF005070): No
  • With earthing (EF007376): Yes
  • With vertical cable management (EF011936): No
  • Max. load capacity (EF000258): 1500 kg
  • RAL-number (EF000116): 9005
  • Model (EF000010): With permanent frame
  • Number of height units (EF003561): 4
  • With glazed door (EF001089): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2 172.48
  • Weight (g)78 000.00
Product characteristics
Server cabinet frame
  • Cabinet frame without doors, side panels, levelling feet
  • Capacity : 42 U
  • Height : 1967 mm
  • Weight : 800 mm
  • Depth : 1200 mm
General characteristics
Linkeo Data Center 19" server cabinets - cabinets and equipment
