View larger
Images are for illustrative purposes only. Please refer to data sheet for details

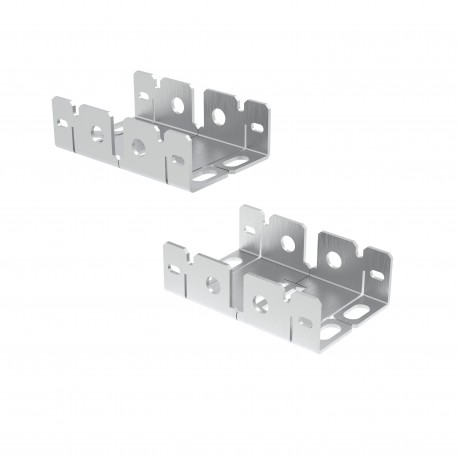

433099 LEGRAND 2 LEGS FIXED CHASSIS COMP
433099
433099
LEGRAND
1 Pcs.
2 LEGS FIXED CHASSIS COMP
Set of 2 fixing brackets to mount and fix plates on the functional uprights of chassis
Modular chassis to compose - 2-lug kit for rail or mounting plate
Automation > Panel for distribution board
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.365
- Weight (g)412.00
Product characteristics
Fixing brackets- For fixing and mounting depth adjustment of the 15 mm depth symmetrical rails, the plain plates, or Lina 12.5 and Lina 25 plates on the functional uprights of chassis
- To fix the plates, order 2 kits
- Set of 2 brackets
General characteristics
Atlantic, Atlantic stainless steel and Marina cabinets - chassis to be composed| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 120 mm |
| With cover (EF000361) | Yes |
| Number of modular spacings per DIN-rail (EF001233) | 0 |
| Number of DIN-rails (EF001232) | 0 |
| With N-PE clamp (EF007962) | No |
| Depth (EF000049) | 60 mm |
| Type of covering (EF000339) | With notch |
| With mounting plate (EF000118) | No |
| Width (EF000008) | 25 mm |
