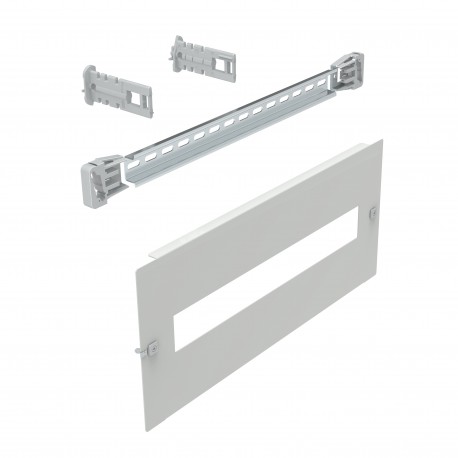

LEGRAND 433082 433082 LEGRAND COVER MOD METAL H200 L800 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

433082 LEGRAND COVER MOD METAL H200 L800

433082

433082

LEGRAND

1 Pcs.

COVER MOD METAL H200 L800 Metal faceplate height 200mm for rail mounting equipment for cabinets width 800mm Modular chassis for composing modular metal faceplate H200 L800 with rail

Automation > Panel for distribution board
ATLANTIC-MARINA CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

433082 LEGRAND COVER MOD METAL H200 L800 serves as a modular access panel featuring an integrated viewing window for electrical enclosures and distribution chassis. Such specialized covers allow operators to visually inspect internal device statuses, meter readings, or modular components without opening the main enclosure door. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 200 mm
  • With cover (EF000361): Yes
  • Number of modular spacings per DIN-rail (EF001233): 36
  • Number of DIN-rails (EF001232): 1
  • With N-PE clamp (EF007962): No
  • Depth (EF000049): 113 mm
  • Type of covering (EF000339): Viewing window
  • With mounting plate (EF000118): No
  • Width (EF000008): 800 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)4.687
  • Weight (g)1 350.00
Product characteristics
Metal faceplates for symmetrical rail mounting equipment
  • RAL 7035
  • Supplied with 15 mm depth symmetrical rails
  • To be fixed on the supports for metal faceplates
  • Adjustable mounting depth for the rails: 45, 60 or 75 mm
Height 200 mm
  • For cabinets width 800 mm (36 modules/row)
General characteristics
Atlantic, Atlantic stainless steel and Marina cabinets - chassis to be composed
