View larger
Images are for illustrative purposes only. Please refer to data sheet for details

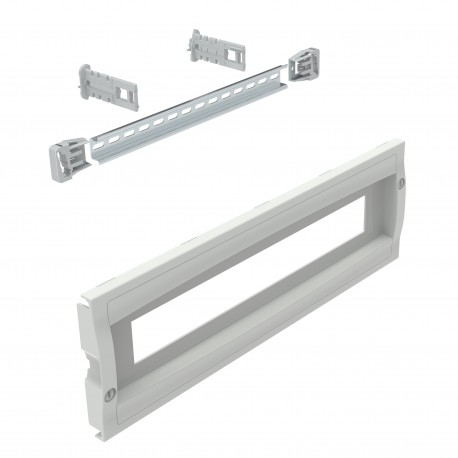

433052 LEGRAND COVER MOD PLAST H150 L800
433052
433052
LEGRAND
1 Pcs.
COVER MOD PLAST H150 L800
Insulating faceplate height 150mm for rail mounting equipment for cabinets width 800mm
Modular chassis for composing modular plastic faceplate H150 L800 rail
Automation > Panel for distribution board
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)7.388
- Weight (g)1 312.00
Product characteristics
Insulating faceplates for symmetrical rail mounting equipment- RAL 7035
- Supplied with 15 mm depth symmetrical rails
- To be fixed on the supports for insulated faceplates
- Adjustable mounting depth for the rails: 45, 60 or 75 mm
- For cabinets width 800 mm (36 modules/row)
General characteristics
Atlantic, Atlantic stainless steel and Marina cabinets - chassis to be composed| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 150 mm |
| With cover (EF000361) | Yes |
| Number of modular spacings per DIN-rail (EF001233) | 36 |
| Number of DIN-rails (EF001232) | 1 |
| With N-PE clamp (EF007962) | No |
| Depth (EF000049) | 127 mm |
| Type of covering (EF000339) | Viewing window |
| With mounting plate (EF000118) | No |
| Width (EF000008) | 800 mm |
