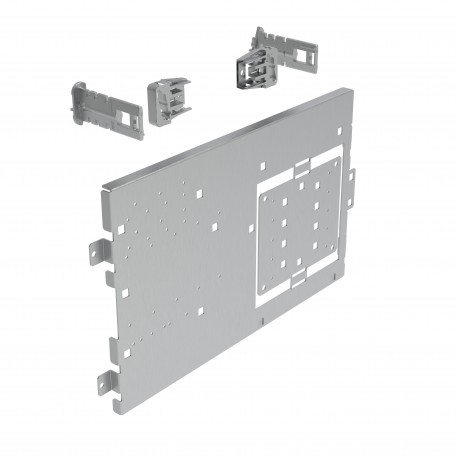

433046 LEGRAND MOUNTING BOARD DPX3 160 A800
433046
433046
LEGRAND
1 Pcs.
MOUNTING BOARD DPX3 160 A800
Mounting plate for 1 to 3 DPX³160 , DPX³250 or Vistop 160A in 800mm wide cabinets
Modular chassis for composing power mounting plate for L. 800 cabinets
Automation > Panel for distribution board
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)13.378
- Weight (g)2 824.00
Product characteristics
Mounting plates- For mounting 1, 2 or 3: DPX³ 160, DPX³ 250 and Vistop 160 A protection devices in 800 mm wide cabinets
General characteristics
Atlantic, Atlantic stainless steel and Marina cabinets - chassis to be composed| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 250 mm |
| With cover (EF000361) | Yes |
| Number of modular spacings per DIN-rail (EF001233) | 0 |
| Number of DIN-rails (EF001232) | 0 |
| With N-PE clamp (EF007962) | No |
| Depth (EF000049) | 127 mm |
| Type of covering (EF000339) | With notch |
| With mounting plate (EF000118) | Yes |
| Width (EF000008) | 800 mm |
