View larger
Images are for illustrative purposes only. Please refer to data sheet for details

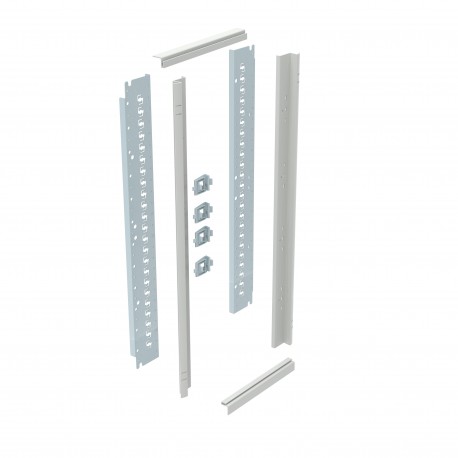

433020 LEGRAND UPRIGHTS LIDS PLAST 700X500
433020
433020
LEGRAND
1 Pcs.
UPRIGHTS LIDS PLAST 700X500
Functional uprights and supports for insulated faceplates for cabinets 700 x 500mm
Modular chassis for composing uprights for cabinets - 700x500 - plastic
Automation > Panel for distribution board
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)4.064
- Weight (g)2 282.00
Product characteristics
Functional uprights and suports for insulated faceplates- Can be equipped with: 15 mm depth symmetrical rails, plain plates, Lina 12.5 and Lina 25 plates and insulating faceplates
- For cabinets 700 x 500 mm
General characteristics
Atlantic, Atlantic stainless steel and Marina cabinets - chassis to be composed| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 700 mm |
| With cover (EF000361) | Yes |
| Number of modular spacings per DIN-rail (EF001233) | 0 |
| Number of DIN-rails (EF001232) | 0 |
| With N-PE clamp (EF007962) | No |
| Depth (EF000049) | 127 mm |
| Type of covering (EF000339) | With notch |
| With mounting plate (EF000118) | No |
| Width (EF000008) | 500 mm |
