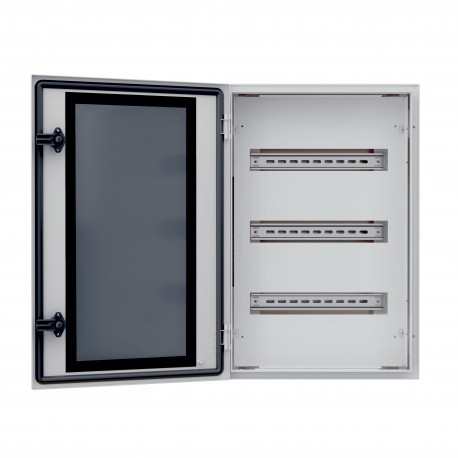

LEGRAND 433015 433015 LEGRAND CHASSIS MOD METAL 800X600 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

433015 LEGRAND CHASSIS MOD METAL 800X600

433015

433015

LEGRAND

1 Pcs.

CHASSIS MOD METAL 800X600 Chassis ready to use with metal faceplates RAL 7035 for cabinets 800x600mm - 135 modules Ready-to-use modular chassis for cabinets - 800x600 - metal

Automation > Panel for distribution board
ATLANTIC-MARINA CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand chassis mod metal 800x600 is a robust metallic internal framework used to support modular electrical devices, terminal blocks, and DIN-rail equipment within industrial control cabinets. Metal chassis systems provide a rigid backbone for organizing complex wiring layouts and heavy-duty switchgear components.

Exact pricing, availability, and lead times are confirmed per enquiry through an RFQ.

  • Height (EF000040): 800 mm
  • With cover (EF000361): Yes
  • Number of modular spacings per DIN-rail (EF001233): 27
  • Number of DIN-rails (EF001232): 5
  • With N-PE clamp (EF007962): No
  • Depth (EF000049): 132 mm
  • Type of covering (EF000339): Viewing window
  • With mounting plate (EF000118): No
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)47.697
  • Weight (g)7 522.00
Product characteristics
Chassis with metal faceplates RAL 7035
  • Supplied complete with 15 mm depth symmetrical rails, uprights and faceplates
  • Self extinguishing 750 °C acc. to IEC EN 60695-2-11
  • Complete height faceplates
  • Independent of the depth of the cabinets
For cabinets 800 x 600 mm
  • 135 modules (5 rows of 27)
  • Supplied with 2 blanking plates
General characteristics
Atlantic, Atlantic stainless steel and Marina cabinets - ready to use chassis
