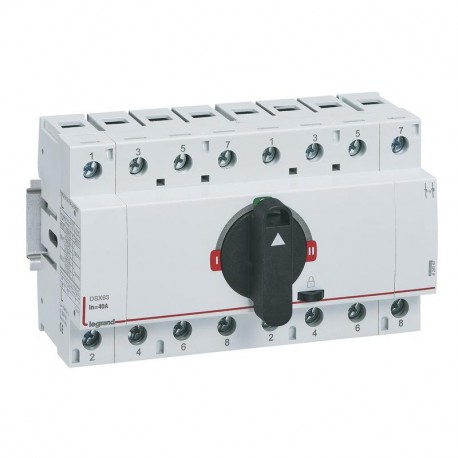

424107 LEGRAND DSX TSE DIN SWITCH 4P 40A
424107
424107
LEGRAND
1 Pcs.
Connectors > Switch disconnector
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand part 424107 serves as a DIN switch utilized for manual circuit interruption and safety isolation in distribution boards. Devices of this specification are routinely integrated into commercial and industrial installations to provide reliable emergency stopping functions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as safety switch (EF006985): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Height (EF000040): 83 mm
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Version as main switch (EF006981): Yes
- Rated permanent current at AC-23, 400 V (EF011777): 40 A
- Interlockable (EF006281): No
- Rated short-time withstand current lcw (EF007050): 1.5 kA
- Voltage release optional (EF007491): No
- Degree of protection (NEMA) (EF011959): 1
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 4
- Type of electrical connection of main circuit (EF006819): Cable clamp
- Version as emergency stop installation (EF006959): Yes
- Number of switches (EF005586): 2
- Motor drive integrated (EF006697): No
More info
▲| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | Yes |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | Yes |
| Execution as a switch-inverter | No |
| Number of switches | 2 |
| Maximum Rated Operating Voltage Ue AC | 690 V |
| Permanent nominal current Iu | 40 A |
| Permanent current assigned to AC-23, 400 V | 40 A |
| Permanent current assigned with AC-21, 400 V | 40 A |
| Icw short-duration rated current resistance | 1.5 kA |
| Rated operating power at 400V AC-23 | 16 kW |
| Conditional Short-Circuit Current Rating Iq | 3 kA |
| Number of poles | 4 |
| Number of auxiliary contacts normally closed | 4 |
| Number of auxiliary contacts normally open | 4 |
| Optional motorized drive | No |
| Integrated motorized drive | No |
| Optional Tension Release | No |
| Device construction | Fixed integrated technology for integrated device |
| Floor Mount | No |
| Suitable for 4-hole front mounting | No |
| Suitable for center front mounting | No |
| Suitable for distributor installation | Yes |
| Execution of the actuator element | Rotary knob (knob) |
| Interlockable | No |
|---|---|
| Main Current Circuit Connection Type | Cable clamp |
| Degree of protection (IP), front | IP20 |
| Degree of protection (NEMA) | 1 |
| Width | 140 mm |
| Height | 83 mm |
| Depth | 67.2 mm |
| Operating Temperature | -25-70 °C |
| Storage temperature | -25-70 °C |
| Type of voltage | AC/DC |
| Direction of the electricity supply | From the top or bottom |
| Display of markings on the connection terminals | Yes |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | Yes |
| Terminal capacity | 10-16 mm² |
| Connection type | Cable |
| Label Space/Print Area | No |
| Contains battery and/or accumulator | No |
| IEC Designation | Not Applicable , Not Applicable |
| Battery or accumulator (Pack1) | Not applicable |
| Item Composition (Pack1) | Not applicable |
| Battery or accumulator (Pack2) | Not applicable |
| Item Composition (Pack2) | Not applicable |
