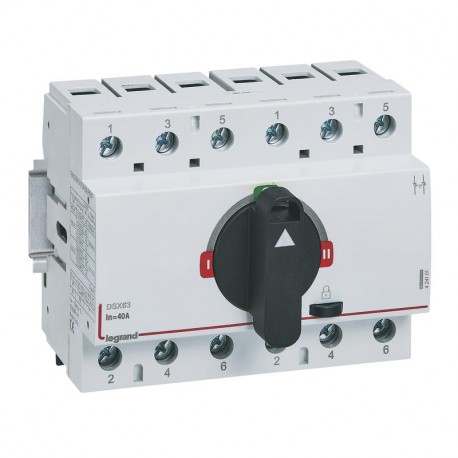

424101 LEGRAND DSX TSE DIN SWITCH 3P 40A
424101
424101
LEGRAND
1 Pcs.
Connectors > Switch disconnector
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand 424101 is a compact modular switch disconnector engineered for DIN rail mounting inside electrical distribution panels to facilitate safe circuit isolation. Panel builders and technicians install these devices to provide dependable local switching and secure load disconnection for building services and industrial machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as safety switch (EF006985): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Height (EF000040): 83 mm
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Version as main switch (EF006981): Yes
- Rated permanent current at AC-23, 400 V (EF011777): 40 A
- Interlockable (EF006281): No
- Rated short-time withstand current lcw (EF007050): 1.5 kA
- Voltage release optional (EF007491): No
- Degree of protection (NEMA) (EF011959): 1
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Type of electrical connection of main circuit (EF006819): Cable clamp
- Version as emergency stop installation (EF006959): Yes
- Number of switches (EF005586): 2
- Motor drive integrated (EF006697): No
More info
▲| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | Yes |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | Yes |
| Execution as a switch-inverter | No |
| Number of switches | 2 |
| Maximum Rated Operating Voltage Ue AC | 690 V |
| Permanent nominal current Iu | 40 A |
| Permanent current assigned to AC-23, 400 V | 40 A |
| Permanent current assigned with AC-21, 400 V | 40 A |
| Icw short-duration rated current resistance | 1.5 kA |
| Rated operating power at 400V AC-23 | 16 kW |
| Conditional Short-Circuit Current Rating Iq | 3 kA |
| Number of poles | 3 |
| Number of auxiliary contacts normally closed | 4 |
| Number of auxiliary contacts normally open | 4 |
| Optional motorized drive | No |
| Integrated motorized drive | No |
| Optional Tension Release | No |
| Device construction | Fixed integrated technology for integrated device |
| Floor Mount | No |
| Suitable for 4-hole front mounting | No |
| Suitable for center front mounting | No |
| Suitable for distributor installation | Yes |
| Execution of the actuator element | Rotary knob (knob) |
| Interlockable | No |
|---|---|
| Main Current Circuit Connection Type | Cable clamp |
| Degree of protection (IP), front | IP20 |
| Degree of protection (NEMA) | 1 |
| Width | 105 mm |
| Height | 83 mm |
| Depth | 67.2 mm |
| Operating Temperature | -25-70 °C |
| Storage temperature | -25-70 °C |
| Type of voltage | AC/DC |
| Direction of the electricity supply | From the top or bottom |
| Display of markings on the connection terminals | Yes |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | Yes |
| Terminal capacity | 10-16 mm² |
| Connection type | Cable |
| Label Space/Print Area | No |
| Contains battery and/or accumulator | No |
| IEC Designation | Not Applicable , Not Applicable |
| Battery or accumulator (Pack1) | Not applicable |
| Item Composition (Pack1) | Not applicable |
| Battery or accumulator (Pack2) | Not applicable |
| Item Composition (Pack2) | Not applicable |
