424006 LEGRAND DSX SD DIN DISCONNECTOR 4P 32A
424006
424006
LEGRAND
1 Pcs.
Connectors > Switch disconnector
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

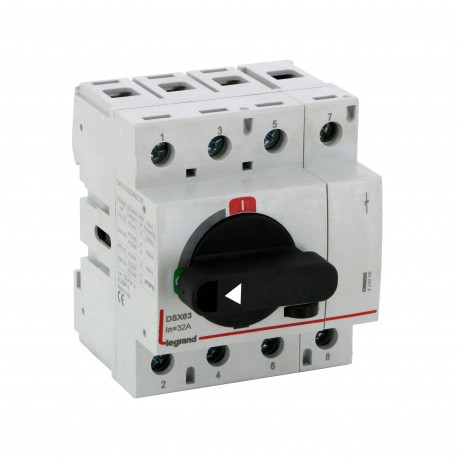

A Legrand 424006 DSX SD DIN disconnector is a 4-pole modular switching device intended for installation on standard DIN rails within commercial and industrial electrical enclosures. DIN rail disconnectors provide clean circuit isolation for control panels and sub-distribution units.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as safety switch (EF006985): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Height (EF000040): 83 mm
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Version as main switch (EF006981): Yes
- Rated permanent current at AC-23, 400 V (EF011777): 32 A
- Interlockable (EF006281): No
- Rated short-time withstand current lcw (EF007050): 1.5 kA
- Voltage release optional (EF007491): No
- Degree of protection (NEMA) (EF011959): 1
- Device construction (EF008240): Built-in device fixed built-in technique; Number of poles (EF001391): 4
- Type of electrical connection of main circuit (EF006819): Cable clamp
- Version as emergency stop installation (EF006959): Yes
- Number of switches (EF005586): 1
- Motor drive integrated (EF006697): No
More info
▲| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | Yes |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | Yes |
| Execution as a switch-inverter | No |
| Number of switches | 1 |
| Maximum Rated Operating Voltage Ue AC | 690 V |
| Permanent nominal current Iu | 32 A |
| Permanent current assigned to AC-23, 400 V | 32 A |
| Permanent current assigned with AC-21, 400 V | 32 A |
| Icw short-duration rated current resistance | 1.5 kA |
| Rated operating power at 400V AC-23 | 12.8 kW |
| Conditional Short-Circuit Current Rating Iq | 3 kA |
| Number of poles | 4 |
| Number of auxiliary contacts normally closed | 4 |
| Number of auxiliary contacts normally open | 4 |
| Optional motorized drive | No |
| Integrated motorized drive | No |
| Optional Tension Release | No |
| Device construction | Fixed integrated technology for integrated device |
| Floor Mount | No |
| Suitable for 4-hole front mounting | No |
| Suitable for center front mounting | No |
| Suitable for distributor installation | Yes |
| Execution of the actuator element | Rotary knob (knob) |
| Interlockable | No |
|---|---|
| Main Current Circuit Connection Type | Cable clamp |
| Degree of protection (IP), front | IP20 |
| Degree of protection (NEMA) | 1 |
| Width | 70 mm |
| Height | 83 mm |
| Depth | 67.2 mm |
| Operating Temperature | -25-70 °C |
| Storage temperature | -25-70 °C |
| Type of voltage | AC/DC |
| Direction of the electricity supply | From the top or bottom |
| Display of markings on the connection terminals | Yes |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | Yes |
| Terminal capacity | 25-70 mm² |
| Connection type | Cable |
| Label Space/Print Area | No |
| Contains battery and/or accumulator | No |
| IEC Designation | Not Applicable , Not Applicable |
| Battery or accumulator (Pack1) | Not applicable |
| Item Composition (Pack1) | Not applicable |
| Battery or accumulator (Pack2) | Not applicable |
| Item Composition (Pack2) | Not applicable |
