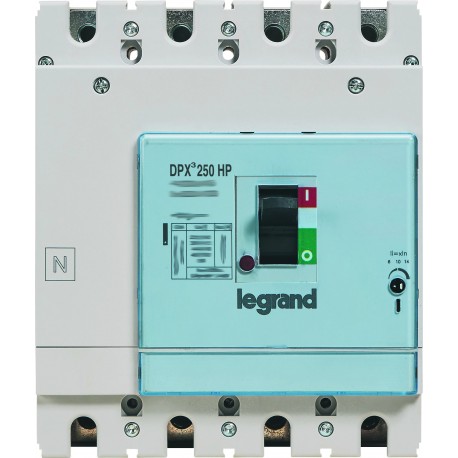

423990 LEGRAND DPX3250HP SM 4P 80A 100KA
423990
423990
LEGRAND
1 Pcs.
DPX3250HP SM 4P 80A 100KA
DPX³ 250 HP 4 Pole 80A Magnetic Only MCCB 100kA
DPX³ 250 HP Molded Case Switch - Magnetic Only - 4P - 100kA - 80A
Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Rated permanent current Iu | 80 A |
|---|---|
| Rated voltage | 220-690 V |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 100 kA |
| Adjustment range undelayed short-circuit release | 480-1120 A |
| Device construction | Complete device in housing |
| Integrated earth fault protection | No |
| Type of electrical connection of main circuit | Bolt connection |
| Suitable for DIN rail (top hat rail) mounting | No |
| DIN rail (top hat rail) mounting optional | No |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 2 |
| With switched-off indicator | Yes |
| With integrated under voltage release | No |
| Number of poles | 4 |
| Position of connection for main current circuit | Front side |
| Type of control element | Wing knob |
| Complete device with protection unit | No |
| Motor drive integrated | No |
| Motor drive optional | Yes |
|---|---|
| Degree of protection (IP) | IP30 |
| Width | 140 mm |
| Height | 112 mm |
| Depth | 165 mm |
| degree of impact strength (IK) | Not applicable |
| Operating / setting temperature | -20-70 °C |
| Storage temperature | -20-70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Electric supplying direction | Not applicable |
| Terminal marking indication | No |
| Colour | Grey |
| RAL-number | 7035 |
| Halogen free | Yes |
| Terminals capacity | 2.5-150 mm² |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | No |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP30 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Adjustment range undelayed short-circuit release (EF007131) | 480 A |
| Integrated earth fault protection (EF007296) | No |
| With integrated under voltage release (EF001390) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| Device construction (EF008240) | Complete device in housing |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Motor drive integrated (EF006697) | No |
| Type of control element (EF006976) | Toggle |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) | 100 kA |
| Rated permanent current Iu (EF001389) | 80 A |
| With switched-off indicator (EF007006) | Yes |
| Motor drive optional (EF007386) | Yes |
| Position of connection for main current circuit (EF006671) | Front |
| Rated voltage (EF003977) | 220 V |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Complete device with protection unit (EF008906) | No |
