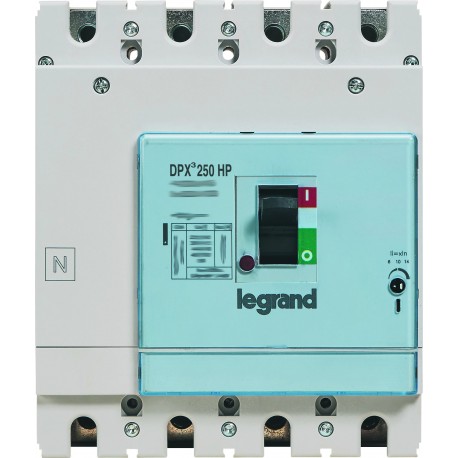

423989 LEGRAND DPX3250HP SM 4P 50A 100KA
423989
423989
LEGRAND
1 Pcs.
DPX3250HP SM 4P 50A 100KA
DPX³250 HP magnetic release only for motor protection - breaking capacity 100kA - 4P - 50A
Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)O/R
- Volume (dm3)O/R
- Weight (g)O/R
Product characteristics
DPX³ 250 HP- Magnetic adjustable from 6 to 14 In
- Can be mounted on plate in XL³ and XL³ S cabinets and enclosures
- 4P
- In : 50 A
General characteristics
DPX³ magnetic release only - MCCBs from 16 to 1250 A for motor protection- Moulded case MCCBs for switching, control isolation and protection of three-phase motors
- Can be fitted with auxiliaries
- Supplied with: screws for connections, fixing screws and insulated shields (phase barriers)
- Conform to IEC 60947-2
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP30 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Adjustment range undelayed short-circuit release (EF007131) | 300 A |
| Integrated earth fault protection (EF007296) | No |
| With integrated under voltage release (EF001390) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| Device construction (EF008240) | Complete device in housing |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Motor drive integrated (EF006697) | No |
| Type of control element (EF006976) | Toggle |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) | 100 kA |
| Rated permanent current Iu (EF001389) | 50 A |
| With switched-off indicator (EF007006) | Yes |
| Motor drive optional (EF007386) | Yes |
| Position of connection for main current circuit (EF006671) | Front |
| Rated voltage (EF003977) | 220 V |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Complete device with protection unit (EF008906) | No |
