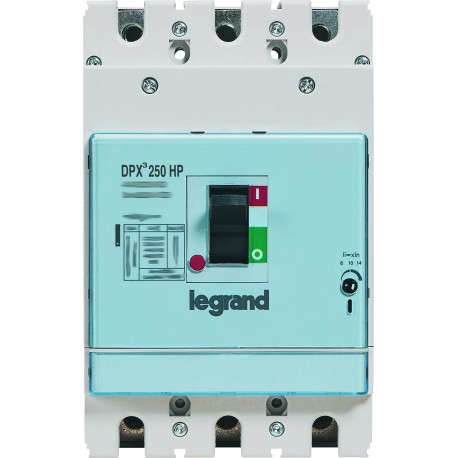

423930 LEGRAND DPX3250HP SM 3P 80A 50KA

423930

423930

LEGRAND

1 Pcs.

DPX3250HP SM 3P 80A 50KA DPX³ 250 HP 3 Pole 80A Magnetic Only MCCB 50kA DPX³ 250 HP Molded Case Switch - Magnetic Only - 3P - 50kA - 80A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand DPX3250HP SM 3P 80A 50KA (423930) operates as a molded case circuit breaker engineered to protect commercial and industrial power distribution circuits from overcurrent and short-circuit conditions. These robust three-pole protective devices are widely implemented in electrical panels to isolate faulty branches safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 480 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Complete device in housing
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 80 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V
  • DIN rail (top hat rail) mounting optional (EF008904): No

More info

▲
Rated permanent current Iu80 A
Rated voltage220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz50 kA
Adjustment range undelayed short-circuit release480-1120 A
Device constructionComplete device in housing
Integrated earth fault protectionNo
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as change-over contact2
With switched-off indicatorYes
With integrated under voltage releaseNo
Number of poles3
Position of connection for main current circuitFront side
Type of control elementWing knob
Complete device with protection unitNo
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30
Width105 mm
Height112 mm
Depth165 mm
degree of impact strength (IK)Not applicable
Operating / setting temperature-20-70 °C
Storage temperature-20-70 °C
Voltage typeAC
Frequency50-60 Hz
Electric supplying directionNot applicable
Terminal marking indicationNo
ColourGrey
RAL-number7035
Halogen freeYes
Terminals capacity2.5-150 mm²
Cable nature for connectionFlexible or rigid
Label space/information surfaceNo

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
