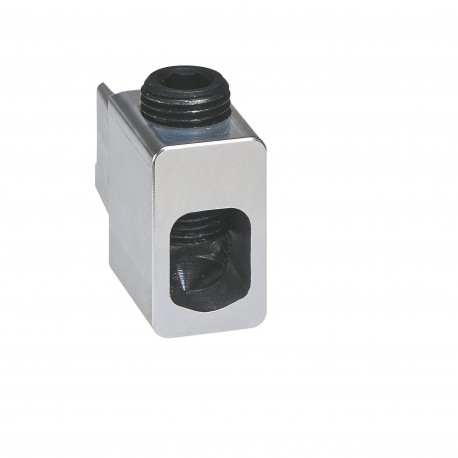

423876 LEGRAND DPX3 125HP HIGH CAP TERMINALS 3P
423876
423876
LEGRAND
1 Pcs.
DPX3 125HP HIGH CAP TERMINALS 3P
High capacity cage terminals for Cu/Al cables for DPX³125 HP 3P - set of 3
Set of 3 high-capacity connection terminals for DPX³ 125 HP - 3P
Automation > Rail terminal bar
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.369
- Weight (g)321.00
Product characteristics
Connection accessoriesHigh capacity cage terminals
- For Cu/Al cables, 1 x 120 mm² for flexible cables and 1 x 150 mm² for rigid cable
- Set of 3 terminals for DPX3 125 HP 3P
General characteristics
DPX³ 125 HP - equipment and accessories| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 50 mm |
| Nominal current (EF000001) | 125 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | Screw |
| Contact safe (EF004521) | No |
| Suitable for extra fine-strand conductors (EF016328) | Yes |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | Yes |
| Number of poles (EF001391) | 3 |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | Yes |
| Suitable for stranded conductors (EF007818) | Yes |
| Depth (EF000049) | 21 mm |
| Conductor cross section, input (EF016330) | 35 mm² |
| Suitable for fine strand conductors (EF007804) | Yes |
| Width (EF000008) | 35 mm |
| Suitable for solid conductors (EF007816) | Yes |
| Number of outputs (EF000319) | 0 |
| Number of inputs (EF000318) | 3 |
