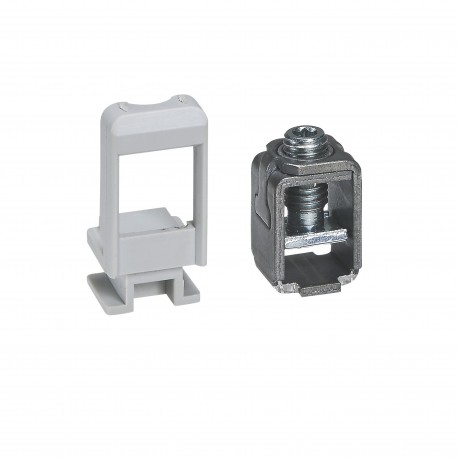

LEGRAND 423875 423875 LEGRAND DPX3 125HP 4P TERMINALS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

423875 LEGRAND DPX3 125HP 4P TERMINALS

423875

423875

LEGRAND

1 Pcs.

DPX3 125HP 4P TERMINALS Cage terminals for Cu/Al cables for DPX³125 HP 4P - set of 4 Set of 4 connection terminals for DPX³ 125 HP - 4P

Automation > Rail terminal bar
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand terminal accessory secures power cables directly to compatible circuit breaker models, ensuring dependable contact reliability in industrial power panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 24 mm
  • Nominal current: 125 A
  • Connection type: Screw-/spring clamp connection
  • Mounting method: Screw
  • Contact safe: No
  • Suitable for extra fine-strand conductors: Yes
  • Number of poles: 4
  • Suitable for stranded conductors: Yes
  • Depth: 15 mm
  • Conductor cross section, input: 2.5 mm²
  • Suitable for fine strand conductors: Yes
  • Width: 16 mm
  • Suitable for solid conductors: Yes
  • Number of outputs: 0
  • Number of inputs: 4

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.211
  • Weight (g)117.00
Product characteristics
Connection accessories
Cage terminals
  • For Cu/Al cables, 1 x 50 mm² for flexible and rigid cables
  • Set of 4 terminals for DPX3 125 HP 4P
General characteristics
DPX³ 125 HP - equipment and accessories

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
