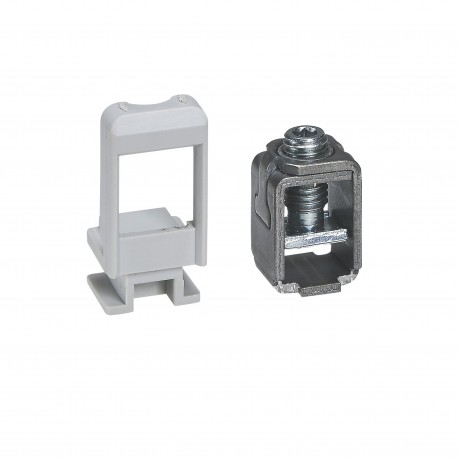

423874 LEGRAND DPX3 125HP 3P TERMINALS
423874
423874
LEGRAND
1 Pcs.
Automation > Rail terminal bar
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 423874 LEGRAND DPX3 125HP 3P TERMINALS serve as dedicated interface blocks that secure incoming and outgoing conductors on compatible molded case circuit breakers. Circuit breaker terminals ensure proper contact pressure and reliable current transfer in commercial and industrial electrical panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 24 mm
- Nominal current (EF000001): 125 A
- Connection type (EF000124): Screw-/spring clamp connection
- Mounting method (EF000003): Screw
- Contact safe (EF004521): No
- Suitable for extra fine-strand conductors (EF016328): Yes
- Number of poles (EF001391): 3
- Suitable for stranded conductors (EF007818): Yes
- Depth (EF000049): 15 mm
- Conductor cross section, input (EF016330): 2.5 mm²
- Suitable for fine strand conductors (EF007804): Yes
- Width (EF000008): 16 mm
- Suitable for solid conductors (EF007816): Yes
- Number of outputs (EF000319): 0
- Number of inputs (EF000318): 3
More info
▲- Pack (number of units)1
- Volume (dm3)0.211
- Weight (g)94.00
Cage terminals
- For Cu/Al cables, 1 x 50 mm² for flexible and rigid cables
- Set of 3 terminals for DPX3 125 HP 3P
