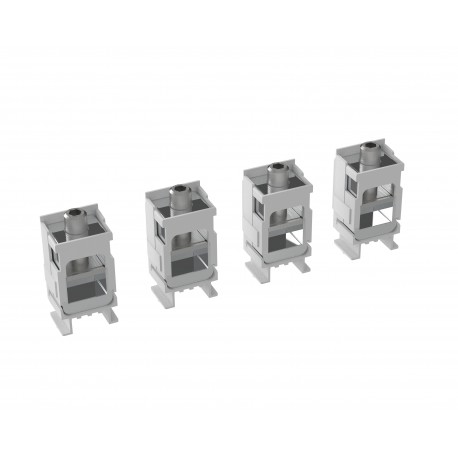

LEGRAND 423831 423831 LEGRAND DPX3 250HP 4P TERMINALS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

423831 LEGRAND DPX3 250HP 4P TERMINALS

423831

423831

LEGRAND

1 Pcs.

DPX3 250HP 4P TERMINALS Cage terminals for Cu/Al cables for DPX³250 HP 4P - set of 4 Set of 4 connection terminals for DPX³ 250 HP - 4P

Automation > Rail terminal bar
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 423831 LEGRAND DPX3 250HP 4P TERMINALS act as essential installation components that enable secure conductor termination on four-pole molded case circuit breakers. These specialized terminals guarantee optimal contact and mechanical stability in high-demand electrical networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 38 mm
  • Nominal current (EF000001): 250 A
  • Connection type (EF000124): Screw-/spring clamp connection
  • Mounting method (EF000003): Screw
  • Contact safe (EF004521): No
  • Suitable for extra fine-strand conductors (EF016328): Yes
  • Number of poles (EF001391): 4
  • Suitable for stranded conductors (EF007818): Yes
  • Depth (EF000049): 18 mm
  • Conductor cross section, input (EF016330): 2.5 mm²
  • Suitable for fine strand conductors (EF007804): Yes
  • Width (EF000008): 24 mm
  • Suitable for solid conductors (EF007816): Yes
  • Number of outputs (EF000319): 0
  • Number of inputs (EF000318): 4

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.241
  • Weight (g)195.00
Product characteristics
Connection accessories
Cage terminals
  • For Cu/Al cables, 1 x 120 mm² for flexible cables and 1 x 150 mm² for rigid cable
  • Set of 4 terminals for DPX3 250 HP 4P
General characteristics
DPX³ 250 HP - equipment and accessories
