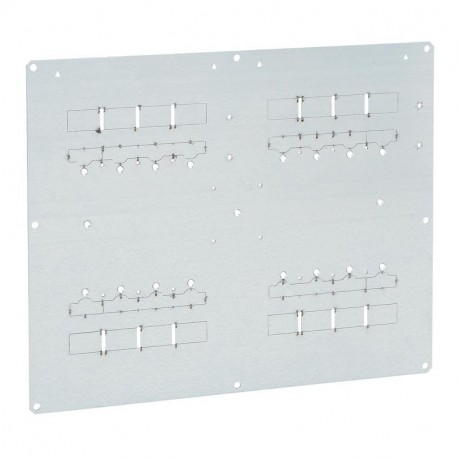

LEGRAND 423826 423826 LEGRAND DPX3 250HP LAT INTERLOCK BOARD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

423826 LEGRAND DPX3 250HP LAT INTERLOCK BOARD

423826

423826

LEGRAND

1 Pcs.

DPX3 250HP LAT INTERLOCK BOARD Plate for mounting and interlocking of 2 DPX³250 HP DPX³ 250 HP 2-Switch Mounting and Interlock Plate

Automation > Auxiliary device for distribution board devices
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 423826 Legrand DPX3 250HP LAT interlock board is a mechanical coordination accessory used with heavy-duty molded case circuit breakers to enforce strict operational sequences between multiple power sources or protective devices. It prevents simultaneous closure of interlocked breakers to avoid dangerous phase mixing and equipment damage in complex electrical distribution systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of fault-signal switches (EF007613): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Width in number of modular spacings (EF002950): 2
  • Suitable for max. current main contact unit (EF008730): 250 A
  • Voltage type (EF000187): AC
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 0
  • With auto test for earth leakage function (EF008727): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.124
  • Weight (g)2 324.00
Product characteristics
Mechanical interlock for transfer switches
  • Plate for mounting and interlocking of 2 DPX3 250 HP
General characteristics
DPX³ 250 HP - equipment and accessories

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
