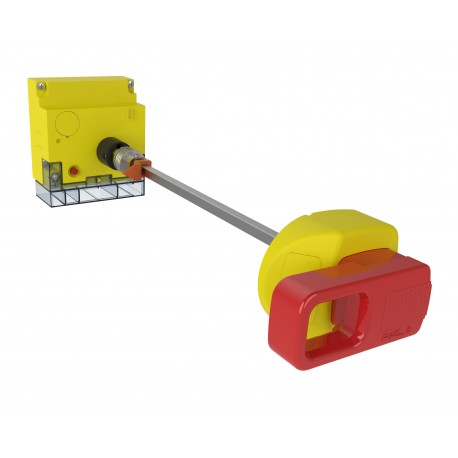

LEGRAND 423803 423803 LEGRAND DPX3 250HP MAN ROT S/PTA EMERG View larger
Images are for illustrative purposes only. Please refer to data sheet for details

423803 LEGRAND DPX3 250HP MAN ROT S/PTA EMERG

423803

423803

LEGRAND

1 Pcs.

DPX3 250HP MAN ROT S/PTA EMERG Vari-depth rotary handle for emergency use for DPX³250 HP - red/yellow Emergency rotary control - extended over door IP55 for DPX³ 250 HP

Automation > Handle for power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Safety-critical circuit management systems often utilize hardware like the 423803 LEGRAND DPX3 250HP MAN ROT S/PTA EMERG to ensure visible and dependable manual control over high-power electrical paths. These components provide clear operational signaling and robust actuation for circuit breakers housed within heavy-duty industrial switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for emergency stop (EF001433): No
  • Suitable for power circuit breaker (EF005863): Yes
  • Suitable for switch disconnector (EF007252): Yes
  • With extension shaft (EF001434): Yes
  • Colour (EF000007): Red/yellow

More info

▲
  • Pack (number of units)1
  • Volume (dm3)3.527
  • Weight (g)753.00
Product characteristics
Rotary handles
Vari-depth handle IP 55
  • Comprising: connection rod, bracket, self-adhesive drilling template, mounting accessories and door lock mechanism
  • For emergency use (red/yellow)
General characteristics
DPX³ 250 HP - equipment and accessories
