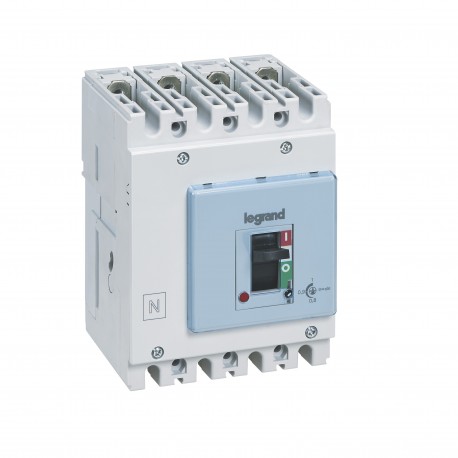

DPX3125HP MAG 4P 125A 70KA DPX³125 HP thermal magnetic release MCCB fixed version - breaking capacity 70kA - 4P - 125A DPX³ 125 HP molded case switch - circuit breaker - 4P - 70kA - 125A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for reliable circuit isolation, the 423699 LEGRAND DPX3125HP MAG 4P 125A 70KA is a molded case circuit breaker utilized in electrical panels to protect against damaging overloads and short circuits. These protective devices are standard components in commercial power distribution architectures requiring dependable fault interruption.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 1000 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Overload release current setting (EF002336): 100 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 125 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): No
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.338
  • Weight (g)1 514.00
Product characteristics
MCCBs - fixed version
  • Thermal adjustable from 0.8 to 1 In
  • Magnetic fixed at 10 In (fixed at 400 A for In from 16 A to 40 A)
Breaking capacity Icu 70 kA (400 V~)
  • 4P
  • In : 125 A
General characteristics
DPX³ 125 HP - thermal magnetic release MCCBs from 16 to 125 A - fixing on plate
  • Moulded case MCCBs for switching, control isolation and protection of low voltage electrical lines
  • Can be fitted with auxiliaries
  • Supplied with: screws for connections, fixing screws and insulated shields (phase barriers)
  • Can be fitted with cage terminals 120 mm² max. (flexible cable) or 150 mm² max. rigid cable
  • Conform to IEC 60947-2
  • Sealable adjustment
  • Can be mounted on plate in XL³ and XL³ S cabinets and enclosures
