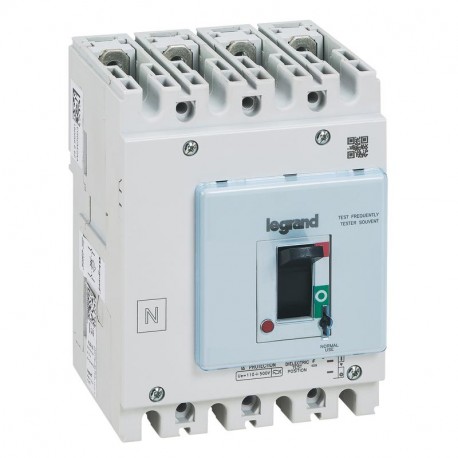

DPX3125HP MAG+DIF 4P 80A 50KA DPX³125 HP thermal magnetic MCCB with electronic earth leakage module fixed version - 50kA - 4P - 80A DPX³ 125 HP molded case switch - circuit breaker dif - 4P - 50kA - 80A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 423677 circuit breaker is an integrated protective device featuring built-in earth fault detection designed to safeguard distribution circuits against overcurrents and insulation failures. This equipment isolates faulty branches in commercial and industrial electrical panels to prevent hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 630 A
  • Integrated earth fault protection (EF007296): Yes
  • With integrated under voltage release (EF001390): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Complete device in housing
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Overload release current setting (EF002336): 64 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 80 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): No
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.338
  • Weight (g)1 594.00
Product characteristics
MCCBs with electronic earth leakage module - fixed version
  • Thermal adjustable from 0.8 to 1 In
  • Magnetic fixed at 10 In (fixed at 400 A for In from 16 A to 40 A)
  • Equipped with earth leakage module
  • Adjustable sensitivity: 0.03 - 0.3 - 1 - 3 A
  • Adjustable tripping: 0 - 0.3 - 1 - 3s (with 0.03 A possible only 0 s)
Breaking capacity Icu 50 kA (400 V~)
  • 4P
  • In : 80 A
General characteristics
DPX³ 125 HP - thermal magnetic release MCCBs from 16 to 125 A - fixing on plate
  • Moulded case MCCBs for switching, control isolation and protection of low voltage electrical lines
  • Can be fitted with auxiliaries
  • Supplied with: screws for connections, fixing screws and insulated shields (phase barriers)
  • Can be fitted with cage terminals 120 mm² max. (flexible cable) or 150 mm² max. rigid cable
  • Conform to IEC 60947-2
  • Sealable adjustment
  • Can be mounted on plate in XL³ and XL³ S cabinets and enclosures
