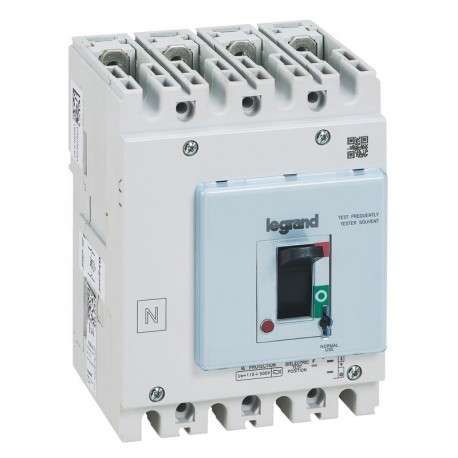

423636 LEGRAND DPX3125HP MAG+DIF 4P 63A 36KA
423636
423636
LEGRAND
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand DPX3125HP MAG+DIF combines magnetic circuit breaker functionality with integrated differential protection in a housed unit. This configuration protects electrical installations against both overcurrent conditions and residual earth faults.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 630 A
- Integrated earth fault protection (EF007296): Yes
- With integrated under voltage release (EF001390): No
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Complete device in housing
- Number of poles (EF001391): 4
- Type of electrical connection of main circuit (EF006819): Bolt connection
- Overload release current setting (EF002336): 50.4 A
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Toggle
- Rated permanent current Iu (EF001389): 63 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): No
- Position of connection for main current circuit (EF006671): Front
- Rated voltage (EF003977): 220 V
More info
▲- Pack (number of units)1
- Volume (dm3)2.338
- Weight (g)1 595.00
- Thermal adjustable from 0.8 to 1 In
- Magnetic fixed at 10 In (fixed at 400 A for In from 16 A to 40 A)
- Equipped with earth leakage module
- Adjustable sensitivity: 0.03 - 0.3 - 1 - 3 A
- Adjustable tripping: 0 - 0.3 - 1 - 3s (with 0.03 A possible only 0 s)
- 4P
- In : 63 A
- Moulded case MCCBs for switching, control isolation and protection of low voltage electrical lines
- Can be fitted with auxiliaries
- Supplied with: screws for connections, fixing screws and insulated shields (phase barriers)
- Can be fitted with cage terminals 120 mm² max. (flexible cable) or 150 mm² max. rigid cable
- Conform to IEC 60947-2
- Sealable adjustment
- Can be mounted on plate in XL³ and XL³ S cabinets and enclosures
