423619 LEGRAND DPX3125HP MAG 4P 125A 36KA
423619
423619
LEGRAND
1 Pcs.
DPX3125HP MAG 4P 125A 36KA

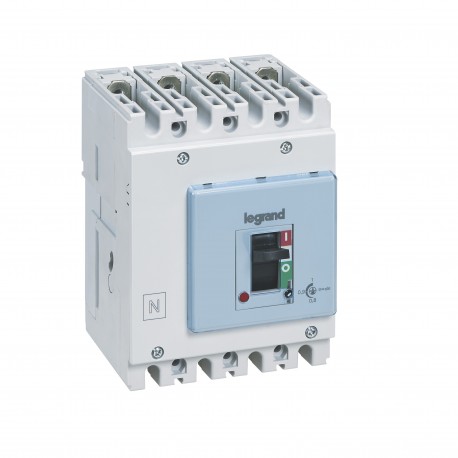

DPX³125 HP thermal magnetic release MCCB fixed version - breaking capacity 36kA - 4P - 125A
DPX³ 125 HP Molded Case Switch - Circuit Breaker - 4P - 36kA - 125A
Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The LEGRAND DPX3125HP MAG 4P 125A 36KA magnetic circuit breaker is designed to safeguard industrial electrical circuits from high-magnitude short circuits and fault currents. Its four-pole architecture ensures complete circuit isolation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 1000 A
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): No
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 4
- Type of electrical connection of main circuit (EF006819): Screw connection
- Overload release current setting (EF002336): 100 A
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Toggle
- Rated permanent current Iu (EF001389): 125 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): No
- Position of connection for main current circuit (EF006671): Front
- Rated voltage (EF003977): 220 V
More info
▲- Pack (number of units)1
- Volume (dm3)2.338
- Weight (g)1 370.00
Product characteristics
MCCBs - fixed version- Thermal adjustable from 0.8 to 1 In
- Magnetic fixed at 10 In (fixed at 400 A for In from 16 A to 40 A)
- 4P
- In : 125 A
General characteristics
DPX³ 125 HP - thermal magnetic release MCCBs from 16 to 125 A - fixing on plate- Moulded case MCCBs for switching, control isolation and protection of low voltage electrical lines
- Can be fitted with auxiliaries
- Supplied with: screws for connections, fixing screws and insulated shields (phase barriers)
- Can be fitted with cage terminals 120 mm² max. (flexible cable) or 150 mm² max. rigid cable
- Conform to IEC 60947-2
- Sealable adjustment
- Can be mounted on plate in XL³ and XL³ S cabinets and enclosures
