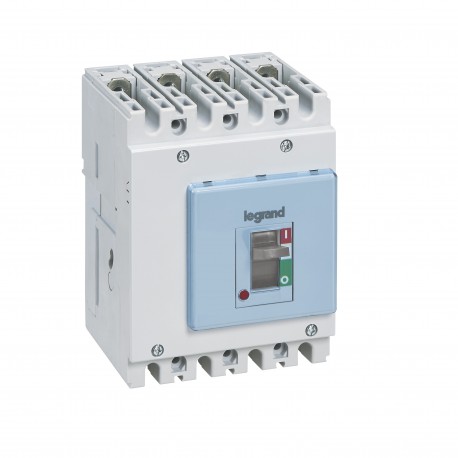

LEGRAND 423187 423187 LEGRAND DPX3125HP SECC+DIF 4P 125A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

423187 LEGRAND DPX3125HP SECC+DIF 4P 125A

423187

423187

LEGRAND

1 Pcs.

DPX3125HP SECC+DIF 4P 125A Trip-free switch DPX³-I 125 HP 4P - 125A with earth leakage module DPX³ -I 125 HP Differential Free Disconnect Switch - 4P - 125A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This 423187 LEGRAND DPX3125HP SECC+DIF 4P 125A housed circuit breaker assembly provides integrated overcurrent protection and earth fault detection for commercial electrical circuits. Housed distribution breakers of this type are widely implemented to protect branch lines and equipment from electrical faults.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Integrated earth fault protection (EF007296): Yes
  • With integrated under voltage release (EF001390): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Complete device in housing
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 125 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): No
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V
  • DIN rail (top hat rail) mounting optional (EF008904): No
  • Complete device with protection unit (EF008906): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.114
  • Weight (g)1 562.00
Product characteristics
DPX³-I 125 HP
  • 4P
  • In : 125 with earth leakage module A
General characteristics
DPX³-I trip-free switches - 160 to 1600 A
  • Trip-free switches for on-load circuit breaking and isolation of low voltage electrical circuits
  • Can be associated to earth leakage modules or to corresponding DPX³ residual current relays
  • Conform to IEC 60947-3
  • Category of use AC 23 A
  • Connection identical to corresponding DPX³
