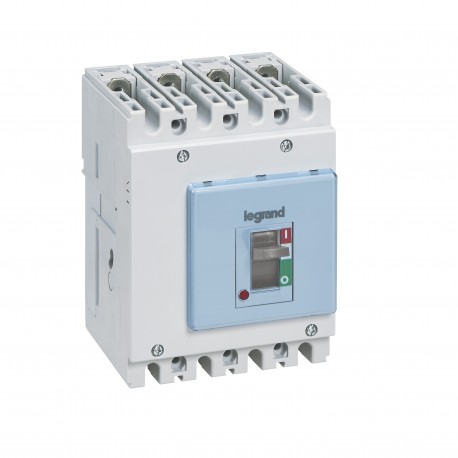

423185 LEGRAND DPX3125HP SECC 4P 125A
423185
423185
LEGRAND
1 Pcs.
DPX3125HP SECC 4P 125A
Trip-free switch DPX³-I 125 HP 4P - 125A
DPX³ -I 125 HP Free Disconnect Switch - 4P - 125A
Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)2.338
- Weight (g)1 358.00
Product characteristics
DPX³-I 125 HP- 4P
- In : 125 A
General characteristics
DPX³-I trip-free switches - 160 to 1600 A- Trip-free switches for on-load circuit breaking and isolation of low voltage electrical circuits
- Can be associated to earth leakage modules or to corresponding DPX³ residual current relays
- Conform to IEC 60947-3
- Category of use AC 23 A
- Connection identical to corresponding DPX³
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP30 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Integrated earth fault protection (EF007296) | No |
| With integrated under voltage release (EF001390) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| Device construction (EF008240) | Complete device in housing |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Motor drive integrated (EF006697) | No |
| Type of control element (EF006976) | Toggle |
| Rated permanent current Iu (EF001389) | 125 A |
| With switched-off indicator (EF007006) | Yes |
| Motor drive optional (EF007386) | No |
| Position of connection for main current circuit (EF006671) | Front |
| Rated voltage (EF003977) | 220 V |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Complete device with protection unit (EF008906) | No |
