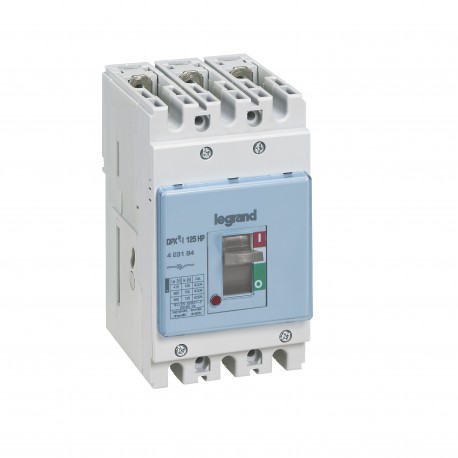

LEGRAND 423184 423184 LEGRAND DPX3125HP SECC 3P 125A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

423184 LEGRAND DPX3125HP SECC 3P 125A

423184

423184

LEGRAND

1 Pcs.

DPX3125HP SECC 3P 125A Trip-free switch DPX³-I 125 HP 3P - 125A DPX³ -I 125 HP Free Disconnect Switch - 3P - 125A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand circuit breaker is designed to protect low-voltage electrical circuits against overloads and short circuits. It serves as a dependable disconnecting and protective device within commercial distribution panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Complete device in housing
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 125 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): No
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V
  • DIN rail (top hat rail) mounting optional (EF008904): No
  • Complete device with protection unit (EF008906): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.806
  • Weight (g)1 024.00
Product characteristics
DPX³-I 125 HP
  • 3P
  • In : 125 A
General characteristics
DPX³-I trip-free switches - 160 to 1600 A
  • Trip-free switches for on-load circuit breaking and isolation of low voltage electrical circuits
  • Can be associated to earth leakage modules or to corresponding DPX³ residual current relays
  • Conform to IEC 60947-3
  • Category of use AC 23 A
  • Connection identical to corresponding DPX³
