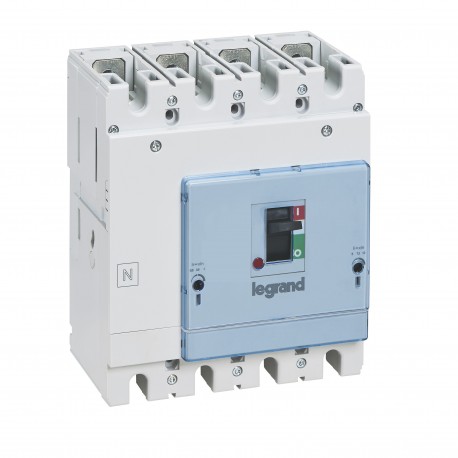

LEGRAND 423082 423082 LEGRAND DPX3250HP MAG 4P 80A 50KA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

423082 LEGRAND DPX3250HP MAG 4P 80A 50KA

423082

423082

LEGRAND

1 Pcs.

DPX3250HP MAG 4P 80A 50KA DPX³ 250 HP 4 Pole 80A Thermal Magnetic MCCB 50kA DPX³ 250 HP molded case switch - circuit breaker - 4P - 50kA - 80A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

423082 LEGRAND DPX3250HP MAG 4P 80A 50KA functions as a molded case circuit breaker built to protect electrical circuits from the detrimental effects of overcurrents and short circuits. This type of protective switching device is commonly installed in commercial buildings and industrial distribution boards for reliable branch circuit protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 400 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Overload release current setting (EF002336): 63 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 80 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 230 V

More info

▲
Rated permanent current Iu80 A
Rated voltage230-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz50 kA
Overload release current setting63-80 A
Adjustment range undelayed short-circuit release400-800 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorYes
With integrated under voltage releaseNo
Number of poles4
Position of connection for main current circuitFront side
Type of control elementWing knob
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30
Width140 mm
Height165 mm
Depth112 mm
degree of impact strength (IK)Not applicable
Operating / setting temperature-5-70 °C
Storage temperature-25-85 °C
Voltage typeAC
Frequency50-60 Hz
Electric supplying directionNot applicable
Terminal marking indicationNo
ColourGrey
RAL-number7035
Halogen freeYes
Terminals capacity2.5-120 mm²
Cable nature for connectionFlexible or rigid
Label space/information surfaceNo

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
