423003 LEGRAND DPX3250HP MAG 3P 32A 36KA
423003
423003
LEGRAND
1 Pcs.
DPX3250HP MAG 3P 32A 36KA

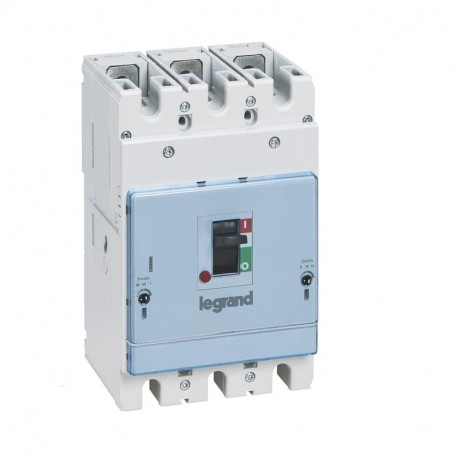

DPX³ 250 HP 3 Pole 32A Thermal Magnetic MCCB 36kA
DPX³ 250 HP molded case switch - circuit breaker - 3P - 36kA - 32A
Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A circuit breaker, listed as Legrand 423003, guards electrical networks against current overloads and potential short circuits. This component is widely utilized in industrial and commercial installations to protect connected equipment and wiring.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 0 A
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): No
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Type of electrical connection of main circuit (EF006819): Bolt connection
- Overload release current setting (EF002336): 25 A
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Toggle
- Rated permanent current Iu (EF001389): 32 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Front
- Rated voltage (EF003977): 230 V
More info
▲| Rated permanent current Iu | 32 A |
|---|---|
| Rated voltage | 230-690 V |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 36 kA |
| Overload release current setting | 25-32 A |
| Adjustment range undelayed short-circuit release | 0-400 A |
| Device construction | Built-in device fixed built-in technique |
| Integrated earth fault protection | No |
| Type of electrical connection of main circuit | Bolt connection |
| Suitable for DIN rail (top hat rail) mounting | No |
| DIN rail (top hat rail) mounting optional | No |
| Number of auxiliary contacts as change-over contact | 2 |
| With switched-off indicator | Yes |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Position of connection for main current circuit | Front side |
| Type of control element | Wing knob |
| Complete device with protection unit | Yes |
| Motor drive integrated | No |
| Motor drive optional | Yes |
|---|---|
| Degree of protection (IP) | IP30 |
| Width | 105 mm |
| Height | 165 mm |
| Depth | 112 mm |
| degree of impact strength (IK) | Not applicable |
| Operating / setting temperature | -5-70 °C |
| Storage temperature | -25-85 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Electric supplying direction | Not applicable |
| Terminal marking indication | No |
| Colour | Grey |
| RAL-number | 7035 |
| Halogen free | Yes |
| Terminals capacity | 2.5-120 mm² |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | No |
