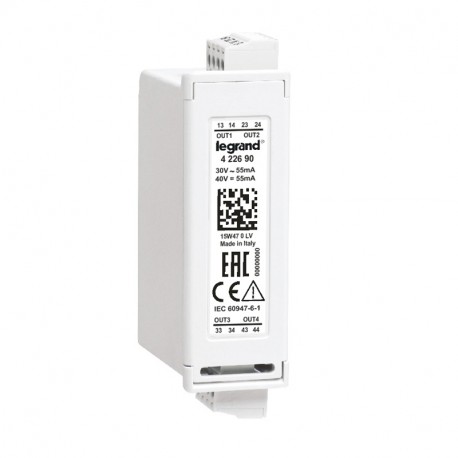

LEGRAND 422690 422690 LEGRAND 4 OUTPUTS STATIC ISOLATED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422690 LEGRAND 4 OUTPUTS STATIC ISOLATED

422690

422690

LEGRAND

1 Pcs.

4 OUTPUTS STATIC ISOLATED Plug-in modules for DMX³ automatic transfer switch control units - 4 opto-isolated static outputs Pull-out module with 4 isolated opto static outputs

Automation > Accessories/spare parts for low-voltage switch technology
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 422690 is a plug-in module featuring four opto-isolated static outputs, designed for integration with automated transfer switch control units in commercial and industrial power networks. Opto-isolated output modules protect control logic circuits by providing electrical galvanic isolation between switching commands and downstream loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Legrand
  • Manufacturer part number: 422690
  • Catalogue title: 422690 LEGRAND 4 OUTPUTS STATIC ISOLATED
  • Product description: Pack (number of units) 1 Volume (dm 3 ) 0.127 Weight (g) 46.00 Product characteristics Plug-in modules 4 opto-isolated static outputs General characteristics Automatic transfer switch control units They can control trans
  • Manufacturer summary: 4 OUTPUTS STATIC ISOLATED Plug-in modules for DMX³ automatic transfer switch control units - 4 opto-isolated static outputs Pull-out module with 4 isolated opto static outputs

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.127
  • Weight (g)46.00
Product characteristics
Plug-in modules
  • 4 opto-isolated static outputs
General characteristics
Automatic transfer switch control units
  • They can control transfer switching between two sources, manage generator start/stop, control single phase, two-phase and three-phase networks, control phase-phase and phase-neutral voltages
  • For DPX³ and DMX³ circuit breakers and CTX³ contactors
