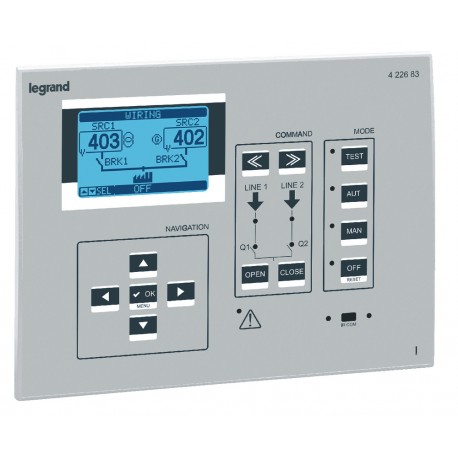

422683 LEGRAND BOX AUTO 2FUENT/3 AUTOMAT
422683
422683
LEGRAND
1 Pcs.
BOX AUTO 2FUENT/3 AUTOMAT
Automatic transfer switch control units for advanced management of 3 circuit breakers and 2 power sources
Configurable automation unit for 3-switch grid inverters
Automation > Accessories/spare parts for low-voltage switch technology
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)6.532
- Weight (g)1 147.00
Product characteristics
Automatic transfer switch control unitsFor advanced management of 3 circuit breakers and 2 power sources
- 8 programmable digital inputs and 7 programmable relay outputs
- Can be equipped with maximum 3 plug-in extension modules between Cat.No 4 226 90/91/92
- Integrated opto-isolatied RS485 communication interface LCD display
- IR communication port on the front panel for connection of USB or WiFi modules Cat.No 4 226 87/88
- Can be configured with the help of front panel touch keys or of the Legrand dedicated software
- Power supply: 12-24-48 V=
- 110-240 V~
- IP65
- IP65
- Configuration software available for download via e-catalogue ACU Configurator app for smartphone and tablet available on Apple Store and Google Play
- configuration software available for download via E-catalogue
General characteristics
Automatic transfer switch control units- They can control transfer switching between two sources, manage generator start/stop, control single phase, two-phase and three-phase networks, control phase-phase and phase-neutral voltages
- For DPX³ and DMX³ circuit breakers and CTX³ contactors
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Control cable connection |
