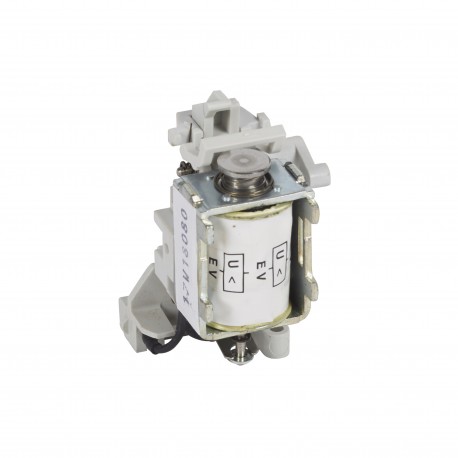

422623 LEGRAND DECLENCHEUR MIN. TENS. RETARDS
422623
422623
LEGRAND
1 Pcs.
DECLENCHEUR MIN. TENS. RETARDS
Minimum voltage dispro coil with delay (800 ms) for DPX³ 630 and 1600 molded case switches
Minimum voltage coil with delay for DPX³ 630 and 1600
Automation > Under voltage coil
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Suitable for all construction sites, the DPX³ range offers 4 sizes of moulded case switches, for gauges between 16 A and 1600 A and breaking powers ranging from 16 to 100 kA. It also offers a wide range of versions to meet all needs: circuit breakers or electronics according to the level of protection required, fixed, sectional and removable devices according to the desired level of maintenance and residual current circuit breakers. With the DPX³ electronic switches with integrated measurement, it is possible to monitor the parameters and consumption of the different circuits in the system, without additional devices or accessories. The selectivity between the switches is optimal thanks to the performance of the DPX³ devices, in critical configurations, the dynamic selectivity and logic selectivity offered by the protection units of the electronic DPX³ ensure maximum continuity of service.
| Pilot Pilot Supply Nominal Voltage for DC | 24-24 V |
|---|---|
| Drive Tension Type | CC |
| Running the electrical connection | Threaded connection |
| Number of contacts normally opened | 0 |
| Number of Normally Closed Contacts | 0 |
| Number of investor contacts | 0 |
| Retarded | Yes |
|---|---|
| Suitable for circuit breakers | Yes |
| Load switch fit | Yes |
| Suitable for motor protection switch | Yes |
| Suitable for overload relays | Yes |
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 24 V |
| Number of contacts as change-over contact (EF008257) | 0 |
| Delayed (EF001541) | Yes |
| Suitable for off-load switch (EF001543) | Yes |
| Suitable for power circuit breaker (EF005863) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type for actuating (EF008242) | DC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Suitable for motor safety switch (EF005826) | Yes |
| Suitable for overload relay (EF001545) | Yes |
