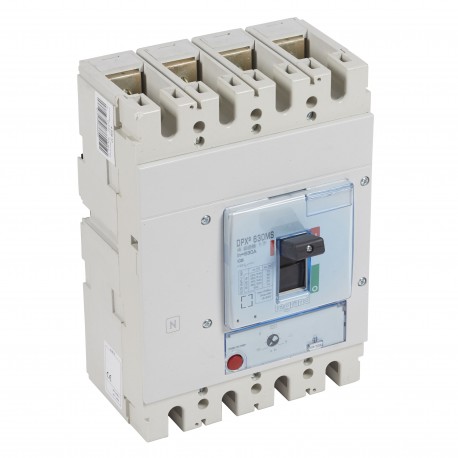

LEGRAND 422616 422616 LEGRAND DPX3 630 SM 4P 400A 36KA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422616 LEGRAND DPX3 630 SM 4P 400A 36KA

422616

422616

LEGRAND

1 Pcs.

DPX3 630 SM 4P 400A 36KA DPX³ 630 Molded Box-Switch - Magnetic Only - 4P - Icu 36 kA (400 V~) - In 400 A DPX³ 630 Molded Case Switch - Magnetic Only - 4P - 36kA - 400A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 422616 DPX3 630 circuit breaker delivers essential fault isolation and circuit protection within commercial and industrial electrical switchboards. By interrupting abnormal current loads, this hardware prevents overheating and electrical fires in facility wiring.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 2000 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Overload release current setting (EF002336): 0 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 400 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲

Product features

Magnetic only molded box switch - Magnetic adjustable up to 10In - Cutting power Icu 36 kA (400 V~) - 4P - In: 400 A

General features

DPX³ 630 molded box switches from 250 to 630 A - Automatic power in molded box for cutting, controlling, sectioning and protection of low voltage power lines - Mounted on mounting plate in XL³ boxes and cabinets - Equipped with auxiliaries - Associated with differential blocks or differential relay - Include connections for bars, screw cover - Comply with UNE-EN 60947-2 - Sealable settings
