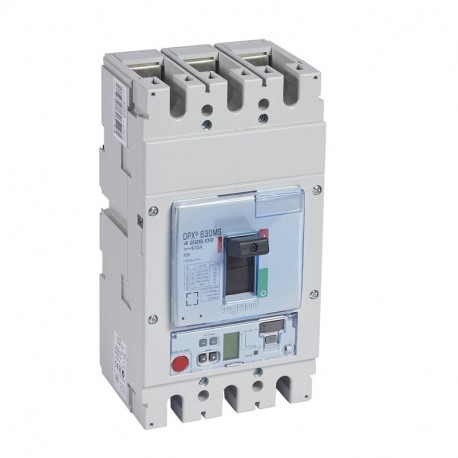

422609 LEGRAND DPX3 630 ELE SM 3P 400A 36KA

422609

422609

LEGRAND

1 Pcs.

DPX3 630 ELE SM 3P 400A 36KA DPX³ 630 Molded Boxed Switch - Magnetic Only Electronic - 3P - Icu 36 kA (400 V~) - In 400 A DPX³ 630 Molded Case Switch - electr only magnetic - 3P - 36kA - 400A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Product features

Magnetic Single Electronic Molded Box Switch - Magnetic Adjustable up to 10In - Cutting Power Icu 36 kA (400 V~) - 3P - In: 400 A

General features

DPX³ 630 molded box switches from 250 to 630 A - Automatic power in molded box for cutting, controlling, sectioning and protection of low voltage power lines - Mounted on mounting plate in XL³ boxes and cabinets - Equipped with auxiliaries - Associated with differential blocks or differential relay - Include connections for bars, screw cover - Comply with UNE-EN 60947-2 - Sealable settings

ETIM for 422609 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Degree of protection (IP) (EF005474) IP30
Number of auxiliary contacts as change-over contact (EF003531) 2
Adjustment range undelayed short-circuit release (EF007131) 5000 A
Integrated earth fault protection (EF007296) No
With integrated under voltage release (EF001390) Yes
Suitable for DIN rail (top hat rail) mounting (EF007250) No
Device construction (EF008240) Built-in device fixed built-in technique
Number of poles (EF001391) 3
Type of electrical connection of main circuit (EF006819) Screw connection
Overload release current setting (EF002336) 0 A
Motor drive integrated (EF006697) No
Adjustment range short-term delayed short-circuit release (EF007129) 600 A
Type of control element (EF006976) Toggle
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) 36 kA
Rated permanent current Iu (EF001389) 400 A
With switched-off indicator (EF007006) Yes
Motor drive optional (EF007386) Yes
Position of connection for main current circuit (EF006671) Front
Rated voltage (EF003977) 220 V
DIN rail (top hat rail) mounting optional (EF008904) No
Complete device with protection unit (EF008906) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
