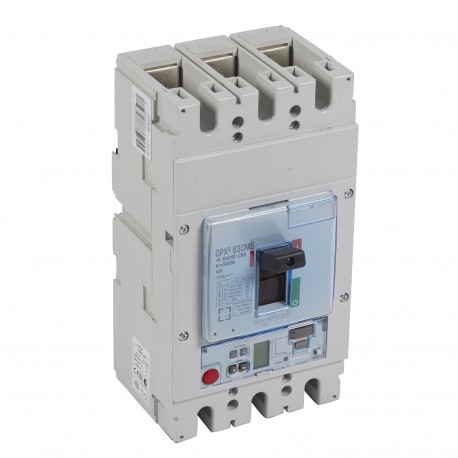

422608 LEGRAND DPX3 630 ELE SM 3P 320A 36KA
422608
422608
LEGRAND
1 Pcs.
DPX3 630 ELE SM 3P 320A 36KA
DPX³ 630 Molded Box Switch - Magnetic Only Electronic - 3P - Icu 36 kA (400 V~) - In 320 A
DPX³ 630 Molded Case Switch - Electr Magnetic Only - 3P - 36kA - 320A
Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Electronic circuit breaker component 422608 supplied by Legrand, used in electrical distribution systems to monitor and interrupt abnormal currents before equipment damage occurs.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 5000 A
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): Yes
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Type of electrical connection of main circuit (EF006819): Screw connection
- Overload release current setting (EF002336): 0 A
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Toggle
- Rated permanent current Iu (EF001389): 320 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Front
- Rated voltage (EF003977): 220 V
