422604 LEGRAND DPX3 1600 SM 3P 800A 50KA

422604

422604

LEGRAND

1 Pcs.

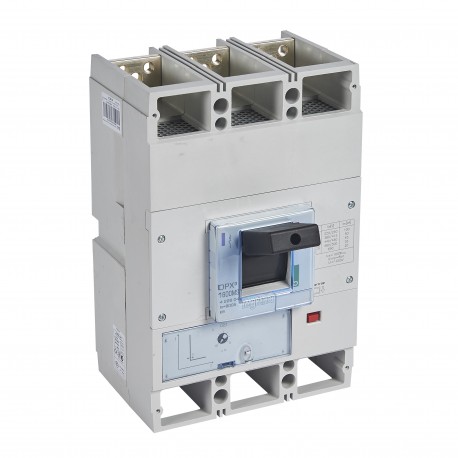

DPX3 1600 SM 3P 800A 50KA DPX³ 1600 3 Pole 800A Magnetic Only MCCB 50kA DPX³ 1600 Molded Case Switch - Magnetic Only - 3P - 50kA - 800A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 422604 circuit-breaker operates as a dependable protective interrupter designed to disconnect electrical power automatically during fault conditions or surges. These robust devices are commonly integrated into high-capacity electrical switchgear to maintain network integrity and prevent downstream equipment failure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 15000 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Overload release current setting (EF002336): 0 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 800 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲
Rated permanent current Iu800 A
Rated voltage220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz50 kA
Overload release current setting0-0 A
Adjustment range undelayed short-circuit release15000-15000 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as change-over contact3
With switched-off indicatorYes
With integrated under voltage releaseYes
Number of poles3
Position of connection for main current circuitFront side
Type of control elementWing knob
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
