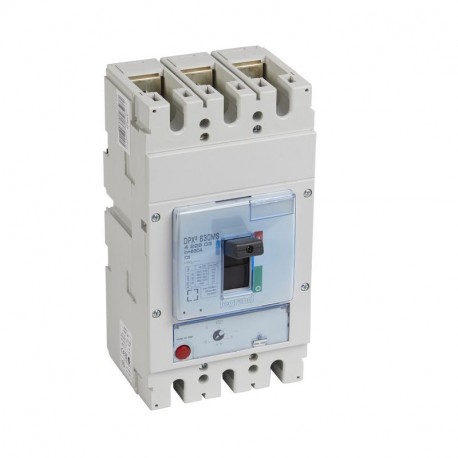

422603 LEGRAND DPX3 630 SM 3P 630A 70KA
422603
422603
LEGRAND
1 Pcs.
DPX3 630 SM 3P 630A 70KA
DPX³ 630 3 Pole 630A Magnetic Only MCCB 70kA
DPX³ 630 Molded Case Switch - Magnetic Only - 3P - 70kA - 630A
Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Rated permanent current Iu | 630 A |
|---|---|
| Rated voltage | 220-690 V |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 70 kA |
| Overload release current setting | 0-0 A |
| Adjustment range undelayed short-circuit release | 3150-6300 A |
| Device construction | Built-in device fixed built-in technique |
| Integrated earth fault protection | No |
| Type of electrical connection of main circuit | Screw connection |
| Suitable for DIN rail (top hat rail) mounting | No |
| DIN rail (top hat rail) mounting optional | No |
| Number of auxiliary contacts as change-over contact | 2 |
|---|---|
| With switched-off indicator | Yes |
| With integrated under voltage release | Yes |
| Number of poles | 3 |
| Position of connection for main current circuit | Front side |
| Type of control element | Wing knob |
| Complete device with protection unit | Yes |
| Motor drive integrated | No |
| Motor drive optional | Yes |
| Degree of protection (IP) | IP30 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP30 |
| Number of auxiliary contacts as change-over contact (EF003531) | 2 |
| Adjustment range undelayed short-circuit release (EF007131) | 3150 A |
| Integrated earth fault protection (EF007296) | No |
| With integrated under voltage release (EF001390) | Yes |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Overload release current setting (EF002336) | 0 A |
| Motor drive integrated (EF006697) | No |
| Type of control element (EF006976) | Toggle |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) | 70 kA |
| Rated permanent current Iu (EF001389) | 630 A |
| With switched-off indicator (EF007006) | Yes |
| Motor drive optional (EF007386) | Yes |
| Position of connection for main current circuit (EF006671) | Front |
| Rated voltage (EF003977) | 220 V |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Complete device with protection unit (EF008906) | Yes |
