LEGRAND 422601 422601 LEGRAND DPX3 630 SM 3P 400A 70KA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

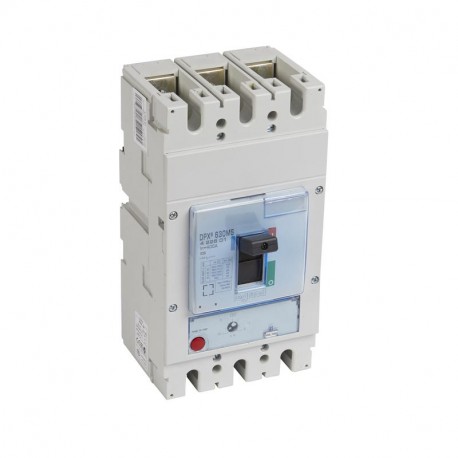

422601 LEGRAND DPX3 630 SM 3P 400A 70KA

422601

422601

LEGRAND

1 Pcs.

DPX3 630 SM 3P 400A 70KA DPX³ 630 3 Pole 400A Magnetic Only MCCB 70kA DPX³ 630 Molded Case Switch - Magnetic Only - 3P - 70kA - 400A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built by Legrand, this circuit-breaker is implemented in electrical distribution networks to protect against overcurrents, short circuits, and system faults. Commercial and industrial panels utilize such protective devices to maintain safe electrical operation and isolate faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 2000 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Overload release current setting (EF002336): 0 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 400 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲
Rated permanent current Iu400 A
Rated voltage220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz70 kA
Overload release current setting0-0 A
Adjustment range undelayed short-circuit release2000-4000 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as change-over contact2
With switched-off indicatorYes
With integrated under voltage releaseYes
Number of poles3
Position of connection for main current circuitFront side
Type of control elementWing knob
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
