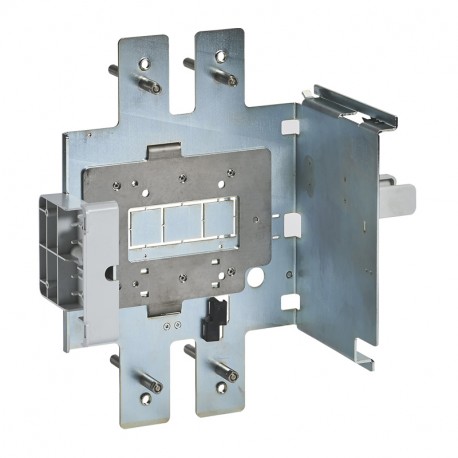

LEGRAND 422593 422593 LEGRAND DPX3 1600 ACC VERSION TRANSECTED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422593 LEGRAND DPX3 1600 ACC VERSION TRANSECTED

422593

422593

LEGRAND

1 Pcs.

DPX3 1600 ACC VERSION TRANSECTED Rear terminals DPX³ 1600 - debro-lift version - 3P "Debro-lift" mechanism for disconnecting the base of the DPX³ 1600 - 3P

Automation > Accessories/spare parts for low-voltage switch technology
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing necessary structural hardware for modular switchgear assembly, the Legrand 422593 DPX3 1600 ACC VERSION TRANSECTED mounting set enables precise positioning of high-current breakers within enclosures. Specialized mounting kits are widely deployed in industrial electrical installations to guarantee secure mechanical anchoring and alignment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Mounting set

More info

▲
  • Pack (number of units)1
  • Volume (dm3)40.668
  • Weight (g)9 939.00
Product characteristics
Draw-out version
  • A DPX³ draw-out version is a DPX³ fitted with draw-out base and a "Debro-lift" mechanism which can be used to withdraw the DPX³ while keeping it on its base
Debro-lift mechanism
  • 3P
  • For DPX³ 1600
  • To be fitted on a DPX³ 1600 fixed version in order to obtain the movable part of a draw out circuit breaker
General characteristics
DPX³ 1600 - equipment and accessories
