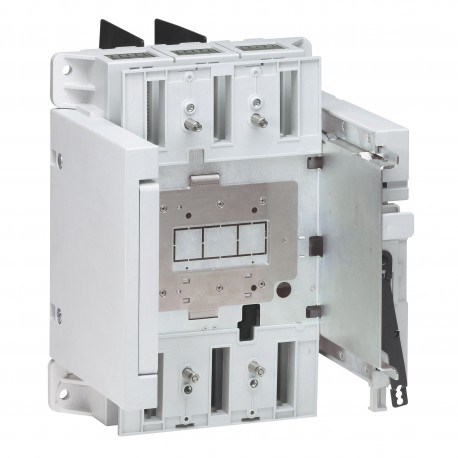

LEGRAND 422588 422588 LEGRAND DPX3 1600 BASE SECT C. P. 3P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422588 LEGRAND DPX3 1600 BASE SECT C. P. 3P

422588

422588

LEGRAND

1 Pcs.

DPX3 1600 BASE SECT C. P. 3P Rear terminals DPX³ 1600 - draw-out version - 3P Rear connection base with sectionable design DPX³ 1600 - 3P

Automation > Chassis part power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for heavy electrical enclosures, the 422588 Legrand DPX3 1600 BASE SECT C. P. 3P acts as a foundational section base for high-capacity molded case circuit breakers. These modular bases ensure proper mechanical alignment and stable busbar connection points within industrial power panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): Yes
  • Version as built-in device (EF006954): Yes
  • Type of electrical connection of main circuit (EF006819): Bolt connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)65.395
  • Weight (g)22 200.00
Product characteristics
Draw-out version
  • A DPX³ draw-out version is a DPX³ fitted with draw-out base and a "Debro-lift" mechanism which can be used to withdraw the DPX³ while keeping it on its base
Draw-out base
  • For DPX³ 1600 equipped with "Debro-lift" mechanism Cat.No 4 225 93 or 4 225 94
  • 3P
  • Rear terminals
General characteristics
DPX³ 1600 - equipment and accessories
