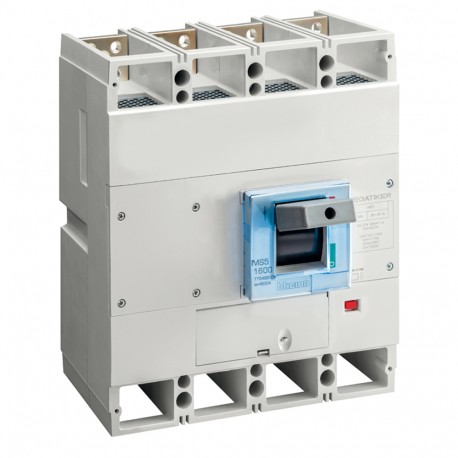

422495 LEGRAND DPX3-I 1600 INTER. 4P 800A
422495
422495
LEGRAND
1 Pcs.
DPX3-I 1600 INTER. 4P 800A
DPX³-I 1600 4 Pole 800A Trip-Free Switch
DPX³ -I 160 Free Disconnect Switch - 4P - 800A
Connectors > Switch disconnector
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Version as main switch | Yes |
|---|---|
| Version as maintenance-/service switch | Yes |
| Version as safety switch | Yes |
| Version as emergency stop installation | Yes |
| Version as reversing switch | No |
| Max. rated operation voltage Ue AC | 690 V |
| Rated operating voltage | 220-690 V |
| Rated permanent current Iu | 800 A |
| Rated permanent current at AC-21, 400 V | 800 A |
| Rated short-time withstand current lcw | 10 kA |
| Rated operation power at AC-23, 400 V | 320 kW |
| Conditioned rated short-circuit current Iq | 10 kA |
| Number of poles | 4 |
| Number of auxiliary contacts as change-over contact | 3 |
| Motor drive optional | Yes |
|---|---|
| Motor drive integrated | No |
| Voltage release optional | Yes |
| Device construction | Built-in device fixed built-in technique |
| Suitable for floor mounting | Yes |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | No |
| Colour control element | Grey |
| Type of control element | Wing knob |
| Interlockable | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Degree of protection (IP), front side | IP30 |
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Version as main switch (EF006981) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 3 |
| Interlockable (EF006281) | Yes |
| Rated short-time withstand current lcw (EF007050) | 10 kA |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | Yes |
| Motor drive integrated (EF006697) | No |
| Version as reversing switch (EF009408) | No |
| Type of control element (EF006976) | Toggle |
| Conditioned rated short-circuit current Iq (EF001444) | 10 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 320 kW |
| Rated permanent current Iu (EF001389) | 800 A |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | Yes |
| Colour control element (EF007167) | Grey |
| Rated permanent current at AC-21, 400 V (EF009165) | 800 A |
| Suitable for distribution board installation (EF007262) | Yes |
| Rated operating voltage (EF001435) | 220 V |
| Degree of protection (IP), front side (EF003118) | IP30 |
