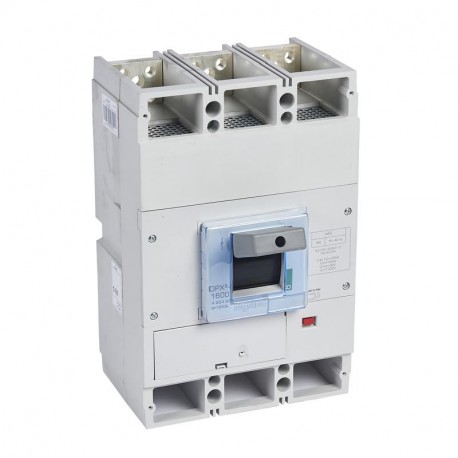

422492 LEGRAND DPX3-I 1600 INTER. 3P 1250A
422492
422492
LEGRAND
1 Pcs.
Connectors > Switch disconnector
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 422492 LEGRAND DPX3-I 1600 INTER. 3P 1250A functions as a heavy-duty industrial switch disconnector utilized for safely isolating electrical circuits and managing power distribution in large commercial or manufacturing facilities. Devices of this category are engineered to interrupt load currents under standard operational conditions while providing reliable circuit separation during maintenance routines.
Specific pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as safety switch (EF006985): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Version as main switch (EF006981): Yes
- Interlockable (EF006281): Yes
- Rated short-time withstand current lcw (EF007050): 24 kA
- Voltage release optional (EF007491): Yes
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Type of electrical connection of main circuit (EF006819): Screw connection
- Version as emergency stop installation (EF006959): Yes
- Motor drive integrated (EF006697): No
- Version as reversing switch (EF009408): No
- Type of control element (EF006976): Toggle
- Conditioned rated short-circuit current Iq (EF001444): 15 kA
- Rated operation power at AC-23, 400 V (EF007027): 500 kW
More info
▲| Version as main switch | Yes |
|---|---|
| Version as maintenance-/service switch | Yes |
| Version as safety switch | Yes |
| Version as emergency stop installation | Yes |
| Version as reversing switch | No |
| Max. rated operation voltage Ue AC | 690 V |
| Rated operating voltage | 220-690 V |
| Rated permanent current Iu | 1250 A |
| Rated permanent current at AC-21, 400 V | 1250 A |
| Rated short-time withstand current lcw | 24 kA |
| Rated operation power at AC-23, 400 V | 500 kW |
| Conditioned rated short-circuit current Iq | 15 kA |
| Number of poles | 3 |
| Number of auxiliary contacts as change-over contact | 3 |
| Motor drive optional | Yes |
|---|---|
| Motor drive integrated | No |
| Voltage release optional | Yes |
| Device construction | Built-in device fixed built-in technique |
| Suitable for floor mounting | Yes |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | No |
| Colour control element | Grey |
| Type of control element | Wing knob |
| Interlockable | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Degree of protection (IP), front side | IP30 |
