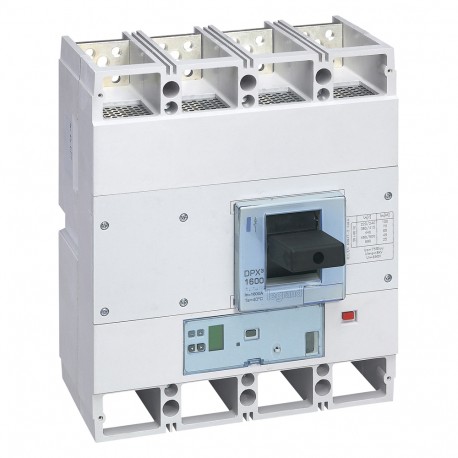

422366 LEGRAND DPX3 1600+MED 4P 800A 50kA
422366
422366
LEGRAND
1 Pcs.
DPX3 1600+MED 4P 800A 50kA
MCCB DPX³ 1600 - S2 elec release + central - 4P - Icu 50 kA (400 V~) - In 800 A
MCCB DPX³ 1600 electronic S2 + size - 4P - Icu 50kA (400V~) - In 800A
Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)48.00
- Weight (g)19 426.00
Product characteristics
MCCBs electronic release S2 with energy metering central unit fixed version- Adjustment of Ir, Isd, tr, tsd
- Instantaneous protection If = 20 kA
- Green indicator lamp
- Connector for test unit
- Logic and dynamic selectivity
- 4P
- In : 800 A
General characteristics
DPX³ 1600 - S2 electronic release MCCBs from 630 to 1600 A- Moulded case MCCBs for switching, control isolation and protection of low voltage electrical lines
- Can be fitted with auxiliaries
- Can be used with residual current relays
- Supplied complete with:
- connection plates for bars
- insulated shields (phase barriers)
- Conform to IEC 60947-2 - Sealable adjustment
- Can be mounted on plate in XL³ cabinets and enclosures
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP30 |
| Number of auxiliary contacts as change-over contact (EF003531) | 3 |
| Adjustment range undelayed short-circuit release (EF007131) | 15000 A |
| Integrated earth fault protection (EF007296) | No |
| With integrated under voltage release (EF001390) | Yes |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Overload release current setting (EF002336) | 320 A |
| Motor drive integrated (EF006697) | No |
| Adjustment range short-term delayed short-circuit release (EF007129) | 480 A |
| Type of control element (EF006976) | Toggle |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) | 50 kA |
| Rated permanent current Iu (EF001389) | 800 A |
| With switched-off indicator (EF007006) | Yes |
| Motor drive optional (EF007386) | Yes |
| Position of connection for main current circuit (EF006671) | Front |
| Rated voltage (EF003977) | 220 V |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Complete device with protection unit (EF008906) | Yes |
