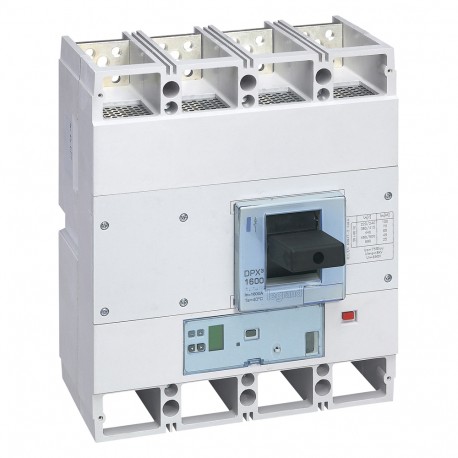

422318 LEGRAND DPX3 1600 ELECT. 4P 800A 50kA

422318

422318

LEGRAND

1 Pcs.

DPX3 1600 ELECT. 4P 800A 50kA MCCB DPX³ 1600 - S2 electronic release - 4P - Icu 50 kA (400 V~) - In 800 A Automatic MCCB DPX³ 1600 - electronic S2 - 4P - 50kA - 800A

Automation > Power circuit-breaker for trafo/generator/installation protection
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An automatic circuit breaker, the 422318 LEGRAND DPX3 1600 ELECT. 4P 800A 50kA provides robust overcurrent protection and manual switching capabilities for industrial electrical distribution networks. Such protective components are essential for isolating faults and safeguarding downstream machinery from electrical overloads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 15000 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Overload release current setting (EF002336): 320 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 800 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Front
  • Rated voltage (EF003977): 220 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)48.00
  • Weight (g)19 296.00
Product characteristics
MCCBs electronic release S2 fixed version
  • Adjustment of Ir, Isd, tr, tsd
  • Instantaneous protection If = 20 kA
  • Green indicator lamp
  • Connector for test unit
  • Logic and dynamic selectivity
Breaking capacity Icu 50 kA (400 V~)
  • 4P
  • In : 800 A
General characteristics
DPX³ 1600 - S2 electronic release MCCBs from 630 to 1600 A
  • Moulded case MCCBs for switching, control isolation and protection of low voltage electrical lines
  • Can be fitted with auxiliaries
  • Can be used with residual current relays
  • Supplied complete with:
    • connection plates for bars
    • insulated shields (phase barriers)
  • Conform to IEC 60947-2 - Sealable adjustment
  • Can be mounted on plate in XL³ cabinets and enclosures

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
