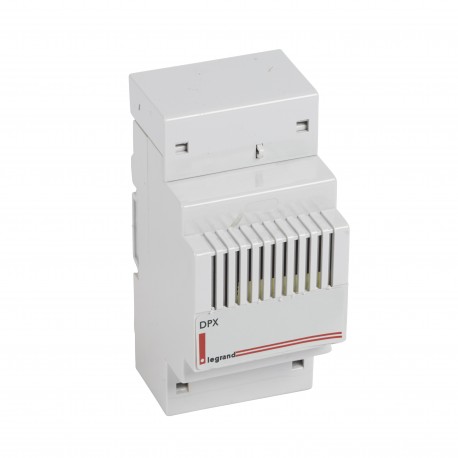

LEGRAND 422249 422249 LEGRAND DPX3 630 B. SHOT M. T. 400V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

422249 LEGRAND DPX3 630 B. SHOT M. T. 400V

422249

422249

LEGRAND

1 Pcs.

DPX3 630 B. SHOT M. T. 400V Undervoltage releases for DRX/DPX³ - 380-415 V~ Minimum voltage coil - coil 400V~/= - DPX³/DPX³ -I 630 and 1600

Automation > Under voltage coil
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 422249 operates as a shunt trip accessory designed to provide dependable remote tripping functions for power circuit breakers and industrial switchgear assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 400 V
  • Number of contacts as change-over contact (EF008257): 0
  • Delayed (EF001541): No
  • Suitable for off-load switch (EF001543): Yes
  • Suitable for power circuit breaker (EF005863): Yes
  • Type of electric connection (EF003961): Screw connection
  • Voltage type for actuating (EF008242): AC/DC
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Suitable for motor safety switch (EF005826): Yes
  • Suitable for overload relay (EF001545): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 400 V
  • Rated control supply voltage AC 60 Hz (EF003979): 400 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.917
  • Weight (g)202.00
Product characteristics
Undervoltage releases
  • Allow remote tripping of a DPX³ or DPX³-I 630 and 1600
  • Consumption: 5 VA
  • 380-415 V~
General characteristics
DPX³ 630 and 1600 - common auxiliaries
