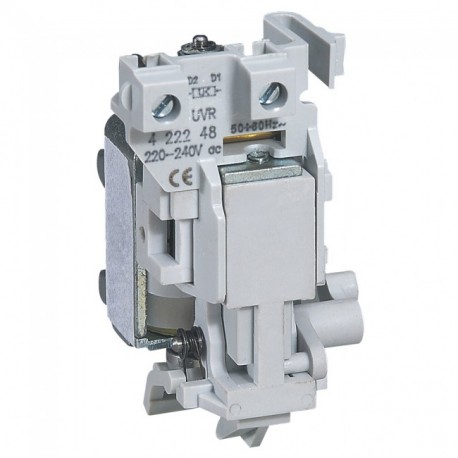

422248 LEGRAND DPX3 630 B. SHOT M. T. 230V
422248
422248
LEGRAND
1 Pcs.
Automation > Under voltage coil
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand part number 422248 is an undervoltage release component built for deployment within industrial power distribution assemblies. Units of this specification provide essential system safety by automatically triggering circuit breaker trips whenever supply voltage drops beneath established limits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage DC (EF003980): 230 V
- Number of contacts as change-over contact (EF008257): 0
- Delayed (EF001541): No
- Suitable for off-load switch (EF001543): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Type of electric connection (EF003961): Screw connection
- Voltage type for actuating (EF008242): AC/DC
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 0
- Suitable for motor safety switch (EF005826): Yes
- Suitable for overload relay (EF001545): Yes
- Rated control supply voltage AC 50 Hz (EF003978): 230 V
- Rated control supply voltage AC 60 Hz (EF003979): 230 V
More info
▲- Pack (number of units)1
- Volume (dm3)0.31
- Weight (g)95.00
- Allow remote tripping of a DPX³ or DPX³-I 630 and 1600
- Consumption: 5 VA
- 220-240 V~
