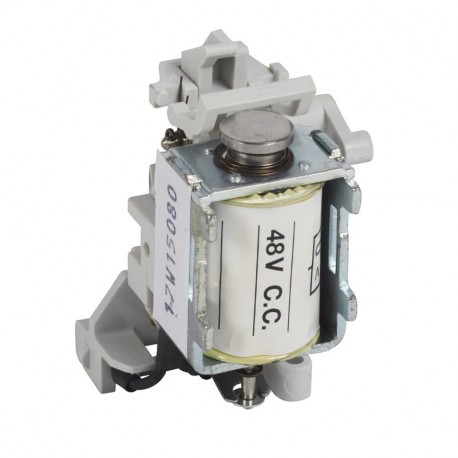

422246 LEGRAND DPX3 630 B. SHOT M. T. 48V

422246

422246

LEGRAND

1 Pcs.

DPX3 630 B. SHOT M. T. 48V Undervoltage releases for DRX/DPX³ - 48 V= Minimum voltage coil - coil 48V~/= - DPX³/DPX³ -I 630 and 1600

Automation > Under voltage coil
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 422246 is a voltage release accessory designed to trip circuit breakers and switches when control voltage drops outside acceptable thresholds. These components provide critical safety interlocks and remote tripping capabilities in complex power distribution architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 48 V
  • Number of contacts as change-over contact (EF008257): 0
  • Delayed (EF001541): No
  • Suitable for off-load switch (EF001543): Yes
  • Suitable for power circuit breaker (EF005863): Yes
  • Type of electric connection (EF003961): Screw connection
  • Voltage type for actuating (EF008242): AC/DC
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Suitable for motor safety switch (EF005826): Yes
  • Suitable for overload relay (EF001545): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 48 V
  • Rated control supply voltage AC 60 Hz (EF003979): 48 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.31
  • Weight (g)93.00
Product characteristics
Undervoltage releases
  • Allow remote tripping of a DPX³ or DPX³-I 630 and 1600
  • Consumption: 5 VA
  • 48 V=
General characteristics
DPX³ 630 and 1600 - common auxiliaries

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
