View larger
Images are for illustrative purposes only. Please refer to data sheet for details

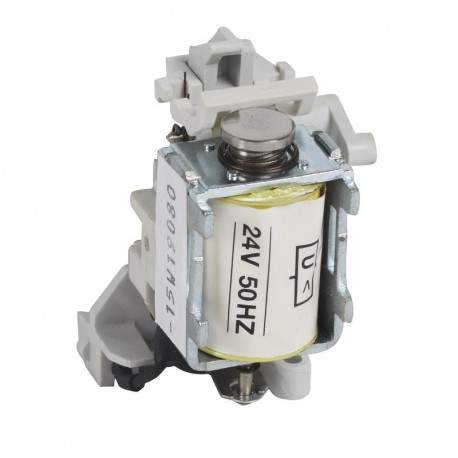

422245 LEGRAND DPX3 630 B. SHOT M. T. 24V TO
422245
422245
LEGRAND
1 Pcs.
DPX3 630 B. SHOT M. T. 24V TO
Undervoltage releases for DRX/DPX³ - 24 V~
Minimum voltage coil - coil 24V~ - DPX³/DPX³ -I 630 and 1600
Automation > Under voltage coil
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.31
- Weight (g)93.00
Product characteristics
Undervoltage releases- Allow remote tripping of a DPX³ or DPX³-I 630 and 1600
- Consumption: 5 VA
- 24 V~
General characteristics
DPX³ 630 and 1600 - common auxiliaries| Feature Name | Feature Value |
|---|---|
| Number of contacts as change-over contact (EF008257) | 0 |
| Delayed (EF001541) | No |
| Suitable for off-load switch (EF001543) | Yes |
| Suitable for power circuit breaker (EF005863) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type for actuating (EF008242) | AC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Suitable for motor safety switch (EF005826) | Yes |
| Suitable for overload relay (EF001545) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
