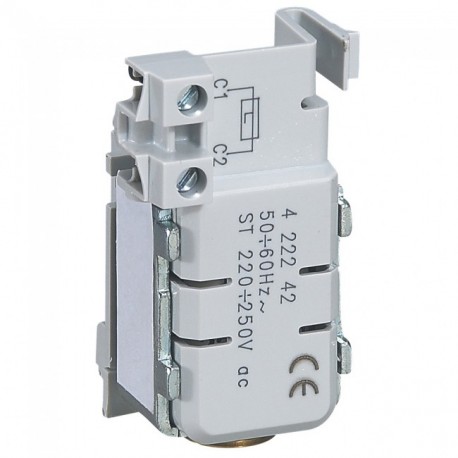

422242 LEGRAND DPX3 630 B. SHOT E. T. 230V

422242

422242

LEGRAND

1 Pcs.

DPX3 630 B. SHOT E. T. 230V Shunt releases for DRX/DPX³ 230 V~ and = Current emission coil - coil 230V~/= - DPX³/DPX³ -I 630 and 1600

Automation > Switch spool for power circuit breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for industrial circuit breaker panels, this Legrand shunt trip coil provides reliable remote opening capabilities to enhance facility electrical safety protocols. It integrates seamlessly into control architectures for rapid fault response. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 220 V
  • Built as switching-on coil (EF005914): No
  • Voltage type for actuating (EF008242): AC/DC
  • Rated control supply voltage AC 50 Hz (EF003978): 220 V
  • Rated control supply voltage AC 60 Hz (EF003979): 220 V
  • Built as switch-off coil (EF006263): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.31
  • Weight (g)91.00
Product characteristics
Shunt releases
  • Allow remote tripping of a DPX³ or DPX³-I 630 and DPX³ 1600
  • Shunt inrush power 300 VA
  • Coil voltage 230 V~
General characteristics
DPX³ 630 and 1600 - common auxiliaries

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
